Guangdong, China (Mainland)
Deyuan
CXH1
2
IP56
24V25W (B15d)
112.5°
Green
wooden case
25days
CXH1Marine Navigation Signal Starboard Light
The scope of application:
Applied to the ships with the length less than 12m as lamp signal liaison when night navigation.
Product characteristic:
1.The shell is made of high-strength engineering plastic PA+GF,the lampshade adopts injection of PC,lens hood adopts good quality stainless steel.
2.The signal lights have the whole seal structure,it is waterproof under the bad environment.
3.The signal lights choose the special signal bulb which conform to the ship criterion,can replace as open the cover.
4.The signal lights can work normally under the temperature -30℃~55℃.
Production authentication:
Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
Adopt standard:
1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships.
2.Confirm to the international standard IEC60598-1-2008.
3.Confirm to the standard of marine electric signal light's technical condition GB/T3028-2012.
Name | Type | Visibility | Level arc | Bulb | Protection class | Color | Weight |
Starboard light | CXH1-3P | 2 | 112.5° | 24V25W (B15d) | IP56 | Green | 0.5kg |

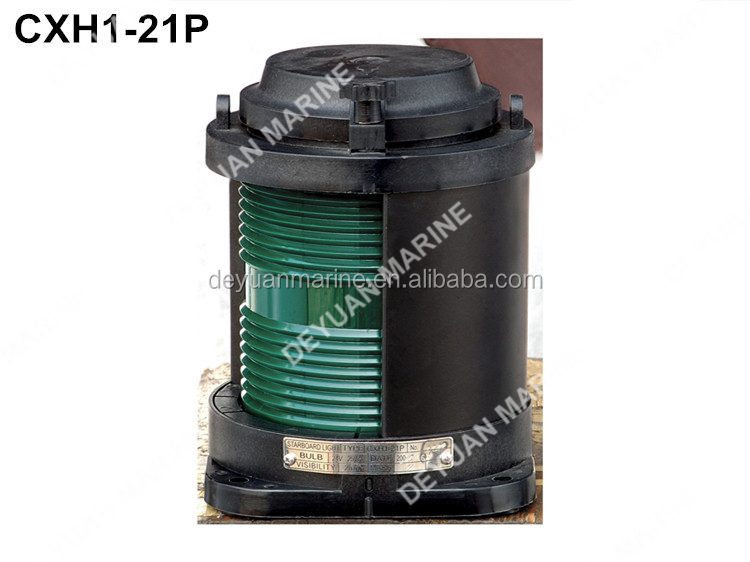

Starboard light | CXH1-21P | 2n.m | 112.5° | BAY15d | 12V25W40cd 24V25W60cd |
Φ9 | IP56 | Green | 1.2kg |
Starboard light | CXH1-1D | 3n.m | 112.5° | B22d | 24V/60W 110V/65W 220V/65W |
Φ12-Φ16 | IP55 | steel | Green | 9.0kg |
