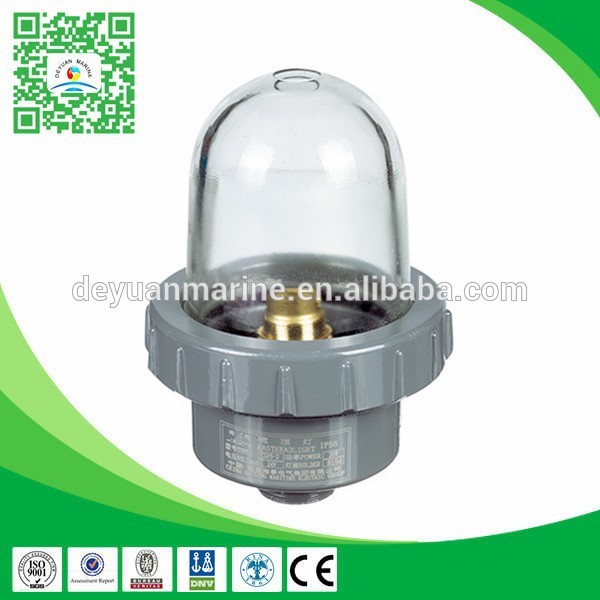

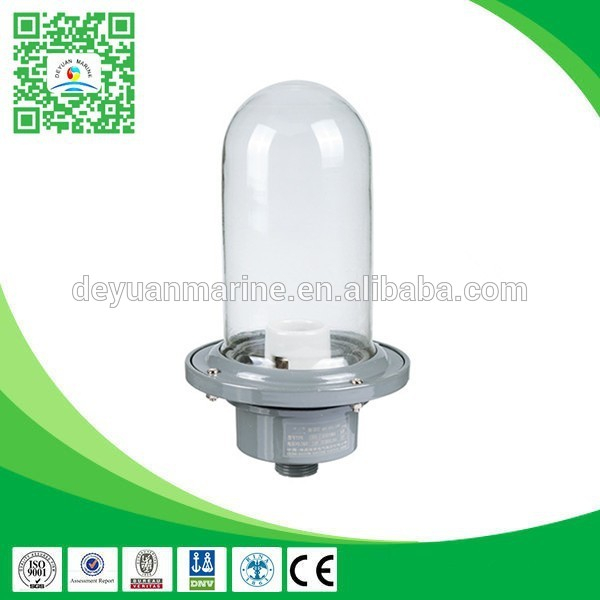

CXH5 Series Marine Head Light

CXH5 Series Marine Head Light

The scope of application:

Applied to the ship as lamp signal when night navigation.

Products characteristic:

1.Screw-type connecting flange,it is convenient to install and replace the bulb.

2.The lampshade adopts good quality Pyrex glass,and it has good function of pervious to light.

Production authentication:

Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.



Adopt standard:



1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships.



2.Confirm to GB/T3028-1995.



Specification:



Type	Visibility	Level arc	Lamp holder	Voltage	Power	Cable outside Diameter	Protection class	Material	Color	Weight
CXH5-1	3n.m	360°	E27	24V 110V 220V	60W	Φ12	IP56	aluminium	Green,Red, White Yellow, blue, purple	0.9kg
CXH5-1A								plastic		0.73kg
CXH5-1B								Stainless		1.73kg





Type	Visibility	Level arc	Lamp holder	Voltage	Power	Cable outside Diameter	Protection class	Material	Color	Weight
CXH5-2	2n.m	360°	B15d	24V	30W	Φ12	IP56	aluminium	Green,Red, White, blue,	0.4kg
CXH5-2A								plastic		0.5kg
CXH5-2B								Stainless		1.25kg



Type	Visibility	Level arc	Lamp holder	Voltage	Power	Cable outside Diameter	Protection class	Material	Color	Weight
CXH5-3	2n.m	360°	B15d	24V, 12V	15W	Φ12	IP56	plastic	Green,Red, White,	0.3kg
