China (Mainland)
Deyuan
TG19
Marine Lights
Double Deck
Wooden Box
10 day

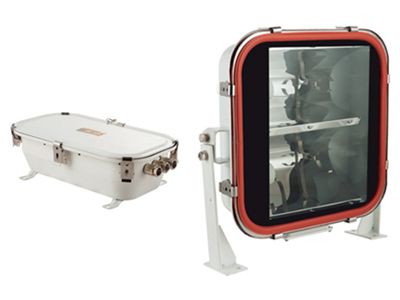

China Marine Flood Light TG19
Used to illumination of ship, port, dock, station and plaza etc.
Confirm to IEC600092-306-2009 and GRADE ENTRY NORMS FOR STEEL SHIPS.
Standards:
1. Confirm to the international regulation for preventing collision at sea
, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
Voltage | 110V/60Hz, 220V/50Hz,220V/60Hz | | | |
Power | 2x250W | 2X400W | 2X250W | 2X400W |
Illuminant | High Pressure Sodium Lamp | Metal Halide Lamp | | |
Luminous flux(Im) | 26000 | 47000 | 20500 | 36000 |
Lamp Holder | E40 | |||
Protection Class | IP56 | |||
Mateial | Stainless Steel | |||
Cable Diameter | Dia10-12mm | |||
Weight | 14.5kg | |||
Annex | Ballast Box |
China Marine Flood Light TG19
Used to illumination of ship, port, dock, station and plaza etc.
Confirm to IEC600092-306-2009 and GRADE ENTRY NORMS FOR STEEL SHIPS.
Standards:
1. Confirm to the international regulation for preventing collision at sea
, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
Voltage | 110V/60Hz, 220V/50Hz,220V/60Hz | | | |
Power | 2x250W | 2X400W | 2X250W | 2X400W |
Illuminant | High Pressure Sodium Lamp | Metal Halide Lamp | | |
Luminous flux(Im) | 26000 | 47000 | 20500 | 36000 |
Lamp Holder | E40 | |||
Protection Class | IP56 | |||
Mateial | Stainless Steel | |||
Cable Diameter | Dia10-12mm | |||
Weight | 14.5kg | |||
Annex | Ballast Box |
