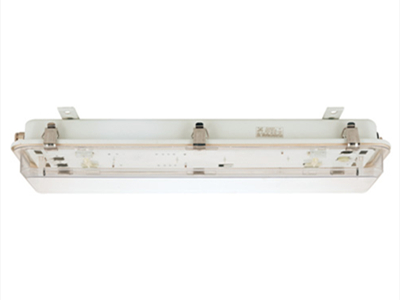

China Marine Fluorescent Pendant Light JCY27-2
Used to illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, tunnel pipeline and weather deck etc. The working enviroment temperature is -20°C~+55°C Products Advantage:
Confirm to IEC600092-306-2009 and GRADE ENTRY NORMS FOR STEEL SHIPS.
Standards:
1. Confirm to the international regulation for preventing collision at sea
, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
| Type | JCY27-1 | JCY27-2 | JCY27-1B | JCY27-2B |
| Voltage | 110V/60Hz, 220V/50Hz, 220V/60Hz | |||
| Power Factor | >0.85 | |||
| Lamp Holder | G13 | |||
| Cable Diameter | Dia8mm-16mm | |||
| Protection Class | IP67 | |||
| Power | 1x20W | 1x20W | 1X20W | 2X20W |
| Weight | 7.2kg | 7.2kg | 7.2kg | 7.2kg |
