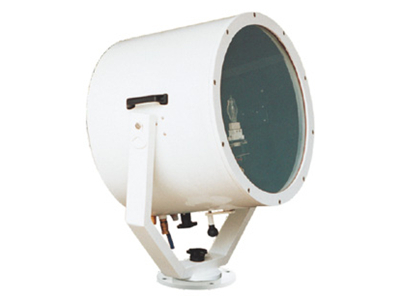

China Marine SUEZ CANNAL Search Light TZ5
Used to illumination of ship, port, dock, station and plaza etc.
Confirm to IEC600092-306-2009 and GRADE ENTRY NORMS FOR STEEL SHIPS.
Standards:
1. Confirm to the international regulation for preventing collision at sea
, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
| Voltage | 220V/550Hz, 220V/60Hz |
| Power | 3000W/2000W |
| Illuminant | Tungsten Halogen Lamp |
| Luminous flux(Im) | 80000/53000 |
| Protection Class | IP56 |
| Lamp Holder | GY16 |
| Cable Diameter | Dia12-14mm |
| Weight | 29kg |
