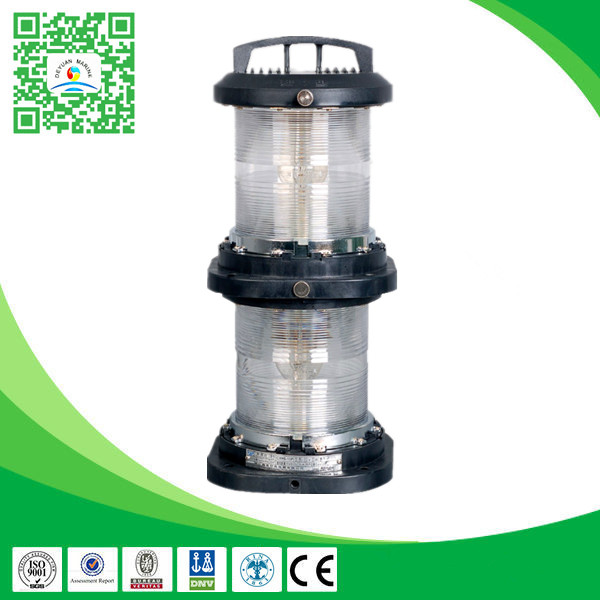

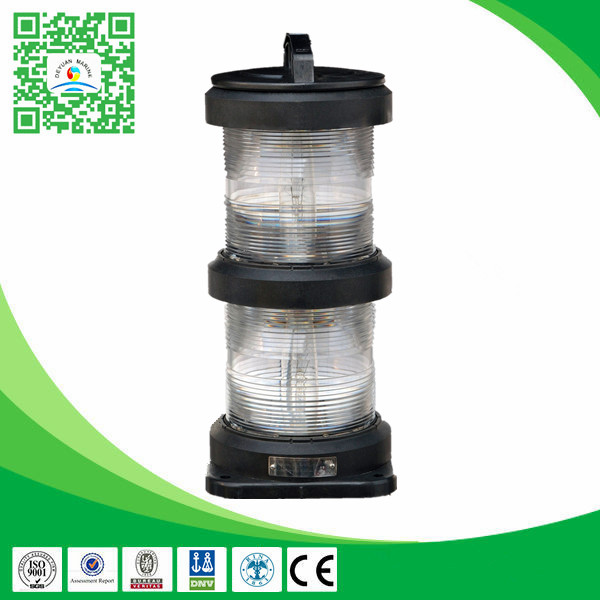

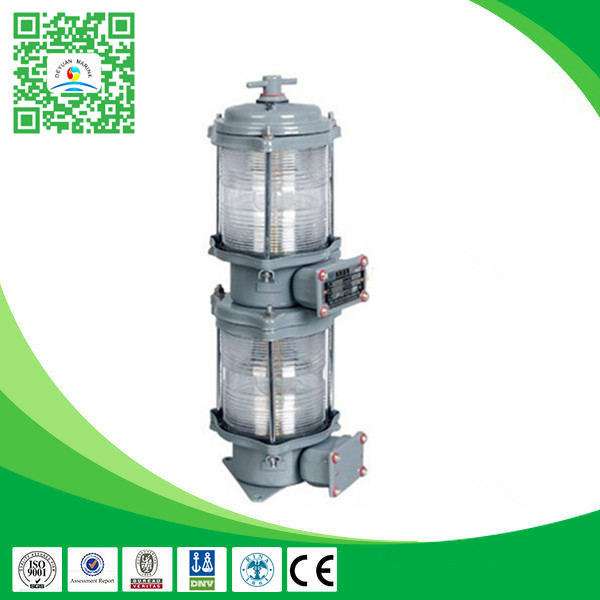

Cxh6 Marine Double-Deck Navigation Signal All-Round Light

  • CXH6

  • IP55

  • 3n.M

  • Marine

  • 360°

  • B22D

The scope of application:
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic:
1.It is convenient to install and replace the bulb,and there are automatic leakage holes in the bottom.
2.The shell adopts good quality metal material steel,the surface is painted the special mold-powder,has the feature of corrosion-resisting and shock resistance.
3.The lampshade adopts polycarbonate,it has the feature of ultraviolet radiation resistance and does not discolor ect.
Production authentication:
Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
Adopt standard:
1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships.
2.Confirm to GB/T3028-2012.
Specification:

Name Type Visibility Level arc  Lamp holder Bulb Protection class Cable outside diameter Color Weight
All-round light CXH6 3n.m 360° B22d 24v60w 110v65w 220v65w IP55 φ14-φ16 Red, Green, Transparent 9.0kg
Cxh6 Marine Double-Deck Navigation Signal All-Round Light
Cxh6 Marine Double-Deck Navigation Signal All-Round Light
Cxh6 Marine Double-Deck Navigation Signal All-Round Light
