DQ Series Diving Navigation Light

  • Guangdong, China (Mainland)

  • Deyuan

  • DQ

  • B22d

  • 220V/120W

  • Wooden case

  • 30days

DQ Series Diving Navigation  Light

Application:
They are used for the conventional powered submarine,nuclear-powered submarine to prevent collision as the lighting signal,formation sailing signal,anchor signal.applied to dive under the water 400m.



Characteristics:
1.The shell,shell ring and cover all founded by silicon brass,have big compressive strength,can withstand the immersion corrosion ability of the seawater,good radiation performance.
2.The material of seal is neoprene,have the function of oil-resistant,pressure-resistant,mildewproof and antiseptic-resistant,can prolong using life-span.
3.The parts of the lamp holder is high temperature resistant,moist resistant,mildew resistant,good insulating performance,shock resistant,good structural strength and so on.
4.Diving navigation light can endure 6Mpa pressure,can dive under the water 400m.



Standard:



CB518-2005 Diving navigation light.



Specification:



Type

Name

Visibility

Level arc

Cable outside Diameter

Lamp Holder

Bulb

Color

Weight

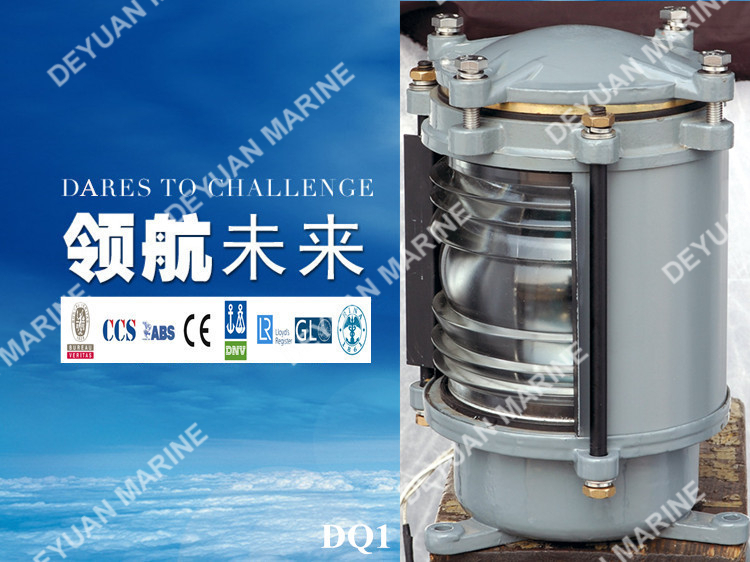

DQ1

Starboard light

3n.m

112.5°

Φ20

B22d

220V/120W

green

14.6kg

DQ2

Port light

3n.m

112.5°

red

14.6kg

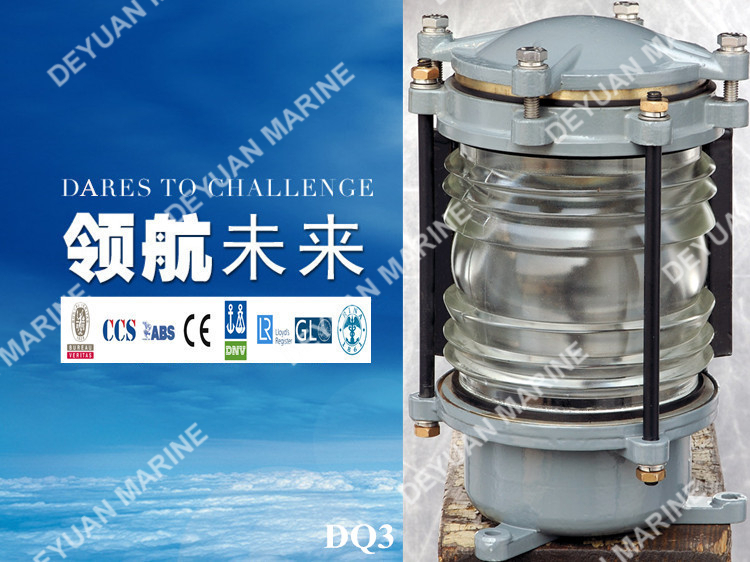

DQ3

Masthead light

6n.m

225°

transparent

13.1kg

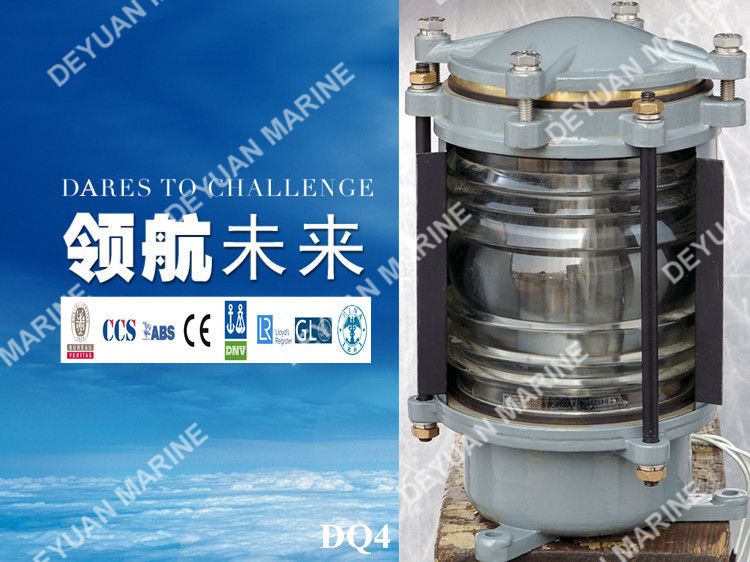

DQ4

Stern light

3n.m

135°

transparent

14.5kg

DQ5

Afterangel light

3n.m

10°

transparent

18.3kg

DQ6

Anchor light

3n.m

360°

transparent

12.8kg
