Double chute vertical passage marine evacuation system with CCS certificate

Inquire Add to Basket

  • Guangdong, China (Mainland)

  • DEYUAN MARINE

  • Double chute vertical passage marine evacuation system

  • CCS

  • One week after receive payment

  • 15 days after receiving payment

Double chute vertical passage marine evacuation system

Double chute vertical passage marine evacuation system

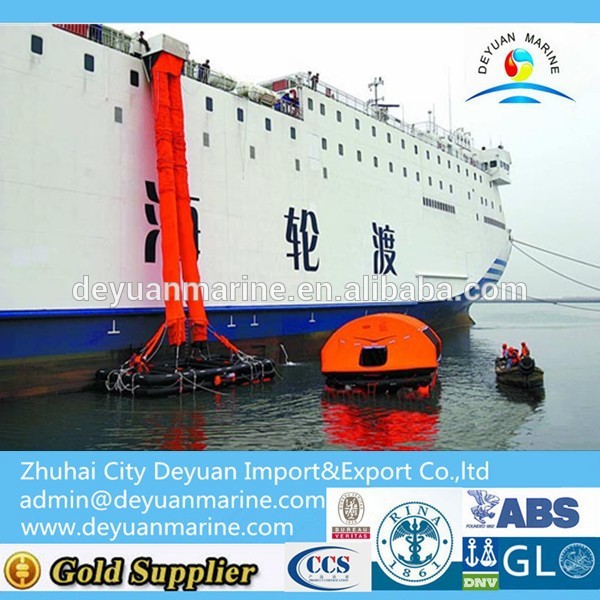

The Marine Evacuation System is stowed in the stainless steel container on the deck. When releasing the handle, the system will be formed into the sea automatically.

Specification: 10,11,12,13,14,15,16,17,18,19,20,21 and 22 meters.

Approval: CCS.

Double chute vertical passage marine evacuation system

Approval standard

1. MSC.81(70)Revised Recommendation on Testing of Life-saving Appliances

2. MSC.48(66)International Life-saving Appliance Code

Model

Maximum Stowage height
(meter)

Maximum assigned
(person)

Capacity on the platform
(person)

Weight
(kg)

Dimension of container
(mm)

MES-VP10.0-600

10

600

120

1900

3300×1500×2200

MES-VP11.0-600

11

1920

MES-VP12.0-600

12

1940

MES-VP13.0-600

13

1960

MES-VP14.0-600

14

1980

MES-VP15.0-600

15

2000

MES-VP16.0-600

16

2020

MES-VP17.0-600

17

2040

MES-VP18.0-600

18

2060

MES-VP19.0-600

19

2080

MES-VP20.0-600

20

2100

MES-VP21.0-600

21

2120

MES-VP22.0-600

22

2140
