Electric Pressure Water Tank

Electric drinking water heater portable electric water heater

1.0 M3 DRG Series Electric Heating Hot Water Tank For Sale

1.High quality.

2.Competitive price.

3.Latest technology

4.Ample supply and prompt delivery.

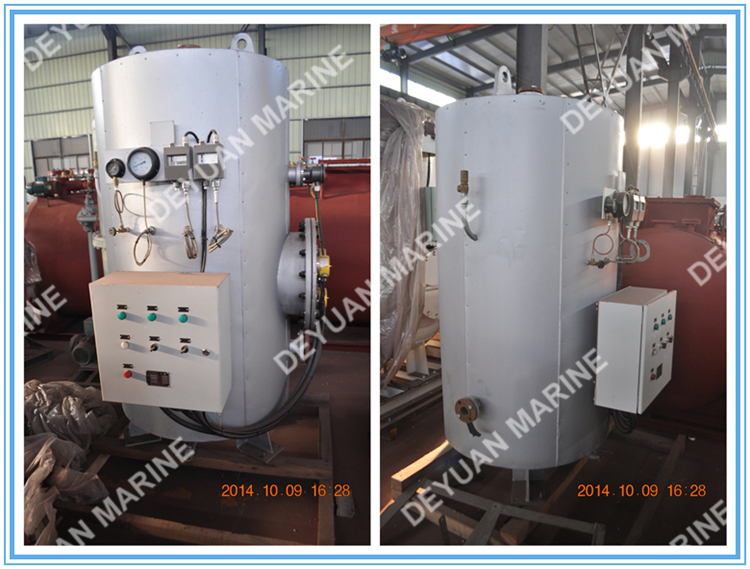

DRG Series Electric Heating Hot Water Tank

Application:

The hot water tank is suitable for heating water on the ship or platform,heated fresh water for crew use.

Principle Description:

This series hot water tank can be combined to use with fresh water pressure tank on board,namely use fresh water to renew the stock of hot water tank,and then heated by electric for usage of entire vessel.

Technical Data:

Type

DRG Series

Capacity(M3)

0.12

0.2

0.3

0.5

1.0

Working pressure(Mpa)

               0.4

Design Pressure(Mpa)

               0.44

Test Pressure(Mpa)

               0.66

Safety valve open pressure(Mpa)

               0.42

Water inlet Temp.(°C)

               15

Water outlet Temp.(°C)

                65

Hot water capacity(kg/h)

180

360

540

720

900

Electric Heating power(KW)

12

24

36

48

60

The laying of the outer surface of insulation layer thickness(mm)

               40

Outsourcing galvanized steel sheet thickness(mm)

               0.7

Power supply

AC380V,50HZ,3phase or AC440V,60HZ,3phase

Weight (kg)

198

243

299

308

513
