ZYG-0.2 Marine Pressure Water Tank

  • DEYUAN

  • China (Mainland)

  • DEYUAN

  • Pressure water tank

  • Water tank

  • Export standard packaging.

  • About 20 days



ZYG-0.2 Marine Pressure Water Tank  :

Technical Requirements:

1.Flange Standard:CB/T46-1999 PN1.0; 2.The shell cover thickness including the forming thinning; 3.The system including security settings;

Design Datas:

Working Pressure

0.4Mpa

Design Pressure

0.44Mpa

Working Temp.

0~45℃

Design Temp.

50℃

Main Materials

CCS-B/SS304/SS316

corrosion allowance

0.75mm

welded joint coefficient

0.6

Capacity

0.2m⊃3;

The relief valve pressure jump

0.42MPa

G.W.

520 Kgs (with standard export wooden case)

N.W.

320 Kgs

Pumps Main Parameters:

Capacity

3 m⊃3;/hr

Head

40 meters

Speed

2900 RPM

Power

2.2 Kw

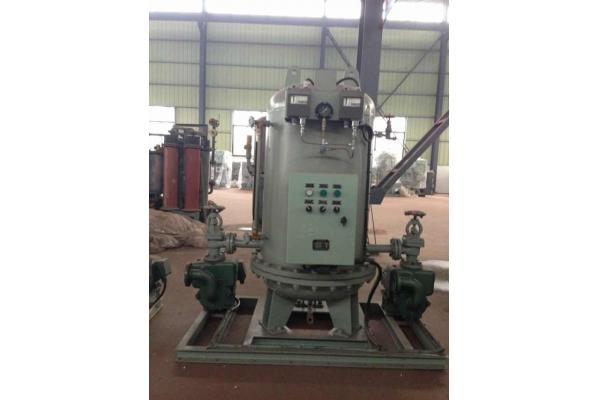

marine_pressure_water_tank
