Guangdong, China (Mainland)
DEYUAN MARINE
Hot Water Tank
0.12~1.0M3
Marine
0.6Mpa
0.7Mpa
0.3Mpa
Standard Export Packing
15~20 Days
ZRG Series Steam Heating Stainless Hot Water Tank Price

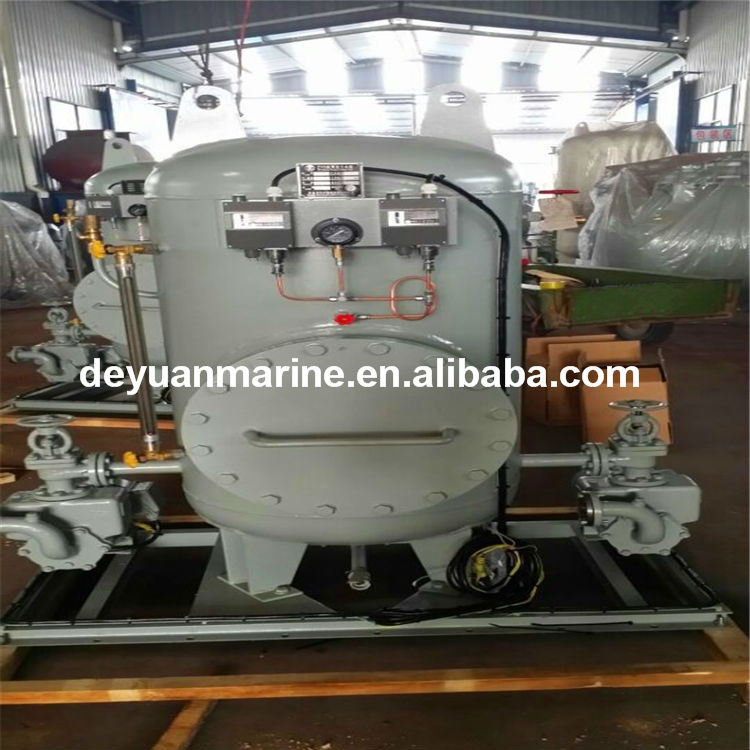

ZRG Series Steam Heating Hot Water Tank
This series of hot water tank is suitable for fresh water system which is heated by steam.
Type | ZRG Series | ||||
Capacity(M3) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 |
Working pressure(Mpa) | 0.6 | ||||
Design Pressure(Mpa) | 0.7 | ||||
steam Pressure(Mpa) | 0.3 | ||||
Water inlet Temp.(°C) | 15 | ||||
Water outlet Temp.(°C) | 65 | ||||
Steam consumption(kg/h) | 27.5 | 45 | 75 | 120 | 325 |
Heated water capacity(kg/h) | 275 | 450 | 750 | 1200 | 3250 |
Steam hot water area(m2) | 0.24 | 0.38 | 0.6 | 1.0 | 2.6 |
Weight (kg) | 155 | 205 | 222 | 286 | 343 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Anne
E-mail: sales7[at]deyuanmarine[dot]com
Skype: marinesales6
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Web: http://www.deyuanmarine.com
