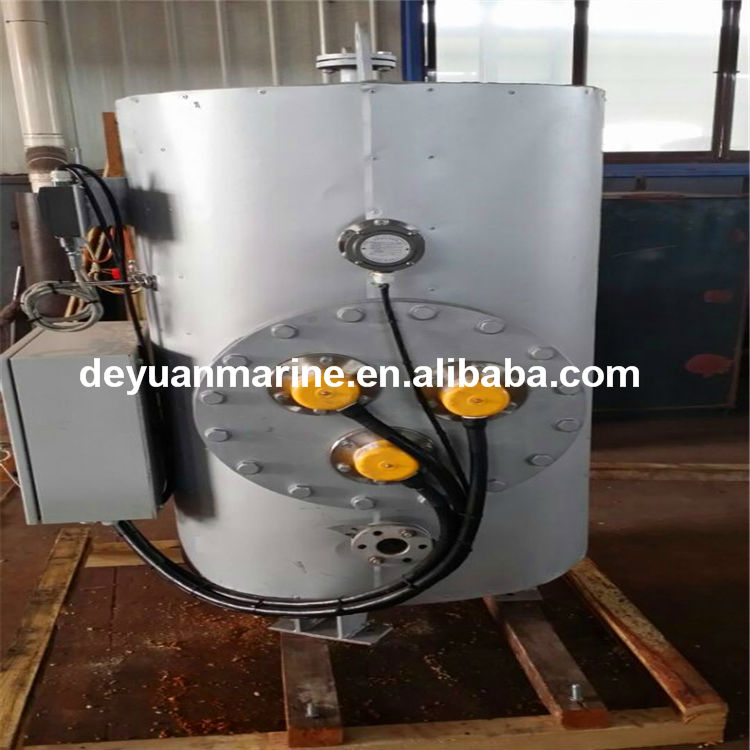

Marine Electric Heating Hot Water Tank
DRG Series Electric Heating Hot Water Tank
Application:
The hot water tank is suitable for heating water on the ship or platform,heated fresh water for crew use.
Principle Description:
This series hot water tank can be combined to use with fresh water pressure tank on board,namely use fresh water to renew the stock of hot water tank,and then heated by electric for usage of entire vessel.
Type | DRG Series | |||||
Capacity(M3) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | |
Working pressure(Mpa) | 0.4 | |||||
Design Pressure(Mpa) | 0.44 | |||||
Test Pressure(Mpa) | 0.66 | |||||
Safety valve open pressure(Mpa) | 0.42 | |||||
Water inlet Temp.(°C) | 15 | |||||
Water outlet Temp.(°C) | 65 | |||||
Hot water capacity(kg/h) | 180 | 360 | 540 | 720 | 900 | |
Electric Heating power(KW) | 12 | 24 | 36 | 48 | 60 | |
The laying of the outer surface of insulation layer thickness(mm) | 40 | |||||
Outsourcing galvanized steel sheet thickness(mm) | 0.7 | |||||
Power supply | AC380V,50HZ,3phase or AC440V,60HZ,3phase | |||||
Weight (kg) | 198 | 243 | 299 | 308 | 513 | |
DN | 400 | 500 | 600 | 700 | 900 | |
A | 608 | 708 | 808 | 908 | 1108 | |
B | 688 | 790 | 911 | 824 | 1072 | |
H | 1241 | 1335 | 1417 | 1773 | 2090 | |
d1 | DN25 | DN32 | DN40 | |||
d2 | 3/4″ | 1″ | ||||
b | 393 | 445 | 516 | 469 | 617 | |
h1 | 271 | 266 | 321 | 440 | 533 | |
h2 | 540 | 580 | 630 | / | / | |
