ZYG Series Combination Pressure Water Tank

ZYG Series Combination Pressure Water Tank

1.High quality.

2.Competitive price.

3.Latest technology

4.Ample supply and prompt delivery.

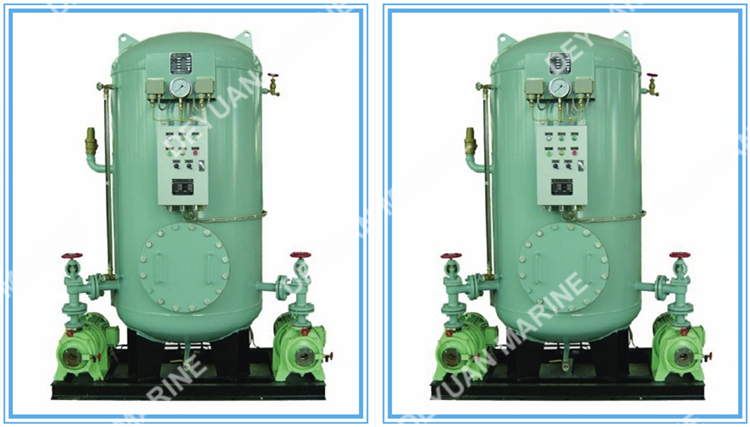

ZYG Series Combination Pressure Water Tank

This series of pressure water tank is suitable for ship fresh water pipes and sea water pipes,pumps;pressure swith,electric control box and hydrophone are installed together.

It is compact and beautiful appearance.easy to install and maintain,and it is an ideal unit for water supply system.

Main technical requirements:



Model		ZYG Series
		0.12	0.2	0.3		0.5	1	1.5	2
Volume(m3)		0.12	0.2	0.3		0.5	1	1.5	2
Working pressure(MPa)		0.4
Design pressure (MPa)		0.44
Test pressure (MPa)		0.66
Take-off pressure of safety valve(MPa)		0.42
Working temperature(℃)		0~45
Design temperature(℃)		50
Water pump	Model	1.5CWX-1.5/1.5A			1.5CWX-2/2A			1.5CWX-3/3A
	Flow rate(m3/h)	3			6.5			10
	Pumping head (m)	40			40			40
	Power(kW)	2.2			3			4
