Electrical lifeboat winch

  • DEYUAN

  • China (Mainland)

  • DEYUAN

  • Nude packaging.

  • Depends on your order quantity.

Specifications


Electrical lifeboat winch:
1.Class certificates:ABS, BV, CCS, DNV, EC, GL, LR, NK, RINA, KR etc.
2.SOLAS approval



Electrical lifeboat winch:

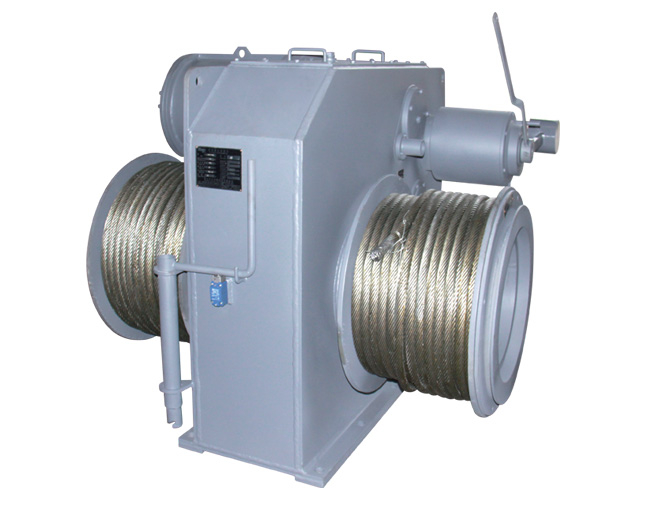

This winch is designed and built according to the latest regulations of SOLAS and international standards, Which has two types: the left and right one. The left one is shown here and the right one is made symmetrically.Decelerating gear box is used of N68 (GB443-84) machine oil lubricationused,and the oil is agreement of 45 liters. Winch installed, Before the test,move the motor to check if the drum rotation correct or not (The rotation should be to the hoisting direction),or,we should adjust the motor wiring.

Main Specification:

Model Safety working load(KN) Hoisting load(KN) Hoisting rope speed(m/min) Descending rope speed(m/min) Motor(kw)
DZB25 25 20 ≥10 90~110 5
D40S 40 20 ≥10 80~90 5
D42S 42 21 ≥10 80~110 5.5
D50S 50 28 ≥10 95~125 5.5
D63S 63 30 ≥10 80~120 7.5
D100S 100 70 ≥10 90~120 15
D125S 125 70 ≥8 90~120 15
D170S 175 90 ≥8 90~120 22
PW100S 100 100 ≥5 50~60 11
PW145S 145 145 ≥5 40~60 18.5
PW170S 170 170 ≥5 40~60 22
