Guangdong, China (Mainland)
DEYUAN MARINE
JCY25-2P
Other
110V/60Hz 220V/50Hz 220V/60Hz
G13
IP56
4.55KG
2*20W
Engineering Plastic
Export Standard

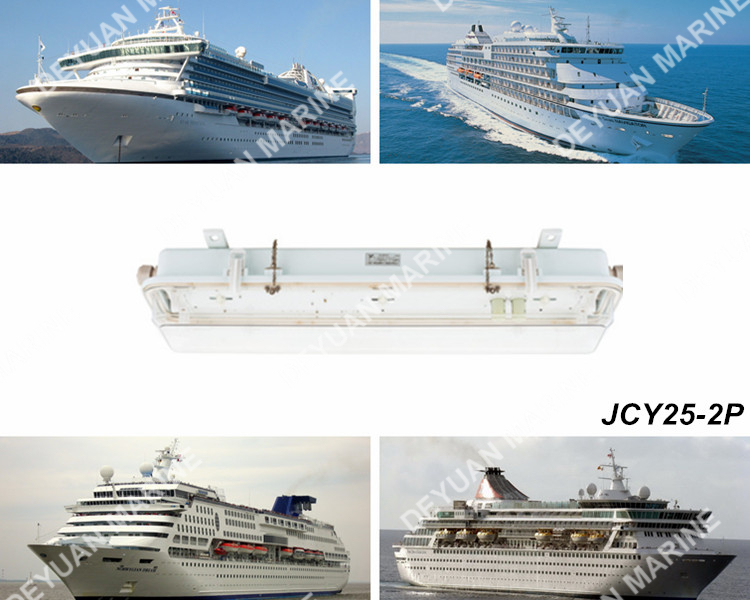

Engineering Plastic Fluorescent Pendant Light JCY25-2P
Application:
Applied to illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel,
pipeline and weather deck etc.
The environmental temperature for work is -20°C~+55°C
Characteristic:
1.The shell adopts good quality steel plate tensioned,lampshade adopts injection of PC,and has the seal structure.
2.In order to prevent from electric shocking,equipped with a copper earthing rod with the mark in and out the lights.
3.Plug in type lamp holder,equipped wiring terminal inside,convenient to connect.
4.The lamp equipped B15 lamp holder,used for 24V/15W emergency bulb,the edge of lampshade marks the marking,remark clear that need the
emergency device when order.
5.Equipped compensating capacitance inside the lamp,also has the good effect of start.
Adopt standard:
Conform to IEC60598-1-2008 standard.
Type | JCY25-2P |
Voltage | 110V/60Hz, 220V/50Hz, 220V/60Hz |
Power Factor | >0.85 |
Lamp Holder | G13 |
Cable Diameter | Dia14mm-16mm |
Protection Class | IP56 |
Power | 2x20W |
Weight | 4.55kg |
Material | Engineering Plastic |
Engineering Plastic IP56 Fluorescent Pendant Light JCY25-2P
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
