DEYUAN

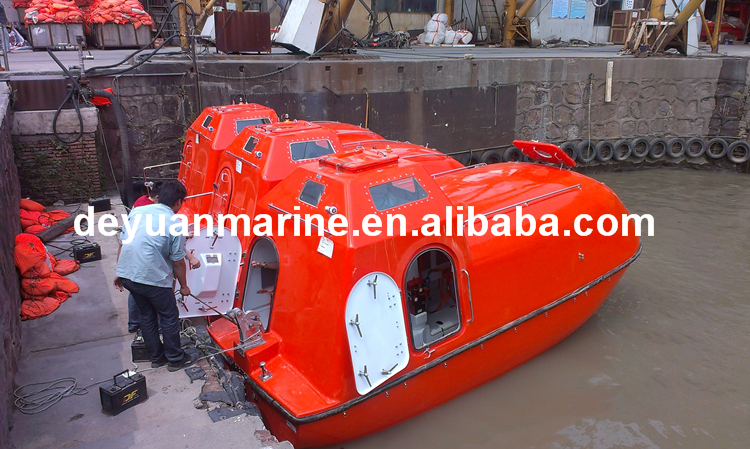

F.R.P Totally Enclosed Lifeboat
F.R.P. Totally enclosed life/rescue boat is suitable for use on board the ocean going vessels under worse
sea condition.14 models are available from 5.00M to 10.90M.
The tanker versions have good fire protection performance.
Model | Main DIM. (M) | Capacity (p) | Hook distance | Speed (knots) | Max height (m) | Davit load (kg) |
DY-QFP-5.00 | 5.00*2.20*1.10 | 22 | 4.6 | >6 | 2.85 | 4015 |
DY-QFN-5.00 | 4365 | |||||
DY-QFP-5.25 | 5.25*2.30*1.10 | 25 | 4.90 | >6 | 2.90 | 4374.5 |
DY-QFN-5.25 | 4724.50 | |||||
GTR57DYC | 5.70*2.30*1.10 | 25 | 5.25 | >6 | 2.85 | 4376.50 |
GTR57DYF | 4787.50 | |||||
DY-QFP-6.00A | 6.00*23.30*1.10 | 36 | 5.65 | >6 | 3.00 | 5477 |
DY-QFN-6.00A | 5857 | |||||
DY-QFP-6.50 | 6.50*2.30*1.20 | 36 | 6.10 | >6 | 3.10 | 5468 |
DY-QFN-6.50 | 5918 | |||||
DY-QFP-7.00 | 7.00*2.70*1.10 | 48 | 6.60 | >6 | 3.10 | 7196 |
DY-QFN-7.00 | 7584 | |||||
DY-QFP-7.50 | 7.50*2.70*1.10 | 44 | 6.50 | >6 | 3.10 | 6684 |
DY-QFN-7.50 | 7184 | |||||
DY-QFP-7.50A | 7.50*2.90*1.10 | 68 | 7.10 | >6 | 3.10 | 8768 |
DY-QFN-7.50A | 9118 | |||||
DY-QFP-8.00 | 8.00*2.85*1.20 | 50 | 7.00 | >6 | 3.10 | 7651 |
DY-QFN-8.00 | 8001 | |||||
DY-QFP-8.50 | 8.50*3.10*1.22 | 63 | 7.50 | >6 | 3.10 | 9686.50 |
DY-QFN-8.50 | 9942.50 | |||||
DY-QFP-8.50X | 8.50*2.90*1.20 | 80 | 8.14 | >6 | 3.25 | 10906 |
DY-QFN-8.50X | 11256 | |||||
DY-QFP-9.35 | 9.35*3.60*1.20 | 102 | 8.95 | >6 | 3.25 | 13515 |
DY-QFN-9.35 | 14015 | |||||
DY-QFP-10.90 | 10.90*3.90*1.20 | 130 | 10.50 | >6 | 3.65 | 17150 |
DY-QFN-10.90 | 17650 |
