DEYUAN
China (Mainland)
DEYUAN
GFM16-1B
Refiller
Export standard packaging.
About 15 days.
Fire extinguisher dry powder filler:

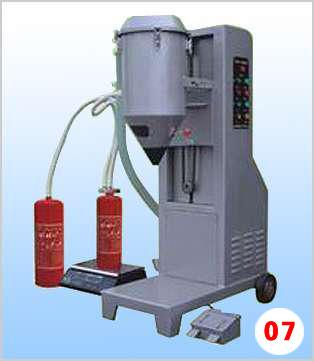

GFM16-1B fire extinguisher dry powder filler:
GFM16-1B fire extinguisher dry powder filler is a new product developed by our factory after absorbing the advantages of powder fillers at home and abroad. It can quickly suck dry powder into the cylinder and be directly filled in the cylinder of the extinguisher to be filled by vacuum fluidics; the dry powder can also be directly sucked into the cylinder of the extinguisher to be filled through the filling and cover. It can directly recover the dry powder in the cylinder of the old extinguisher. The equipment has the functions of lifting and dropping the cylinder electrically by just treading on the rise
or fall pedal.
It features small volume, easy movement, simple operation and lack of environmental pollution. Thus labor intensity is decreased and work environment is improved. It can fill various models of extinguisher cylinder and also suitable for filling various powder products. So it is an ideal equipment in the powder filling industry.
Specifications:
Overall size:800X400X1350mm (W×L×H)
Weight:90Kg
Volage:AC 220V
Power:1.1KW
Filling speed: 5kg/min
Filling residue:1 kg≤ 0.04
Schematic Diagram of Model GFM 16-1B Dry Powder Filler
1.Digital operating panel on the weighing bridge 2.[Shelling]key
3. [Reset]key 4. Weight screen 5. Electronic weighting bridge
6. Powder suction pipe I 7. Cylinder of extinguisher to be filled
8. Filling end cover 9. Window of powder cylinder
10. Powder suction pipe II 11. Air suction pipe 12. Powder source
13. Powder suction port 14. Pipe support 15. Cylinder block
16. Main air pipe 17. Electrical box 18. Elevating gear 19. Powder cylinder
20. Adjustable bolt 21. Operating panel of electric appliances
22. Valve of powder cylinder 23. Valve of powder cylinder 24. Rubber sleeve
25. Direction valve 26. Base 27. Pedal of direction valve 28. Ascending pedal
29. Descending pedal
