Co2 gas filling machine :
GTM-D co2 gas filling machine of fire extingiusher :
GTM-D co2 gas filling machine is a special-purpose equipment for filling the carbon dioxide fire extinguishing agent automatically into model MT2-MT7 etc. portable type fire extinguisher.
This machine adopts low temperature freeze technique to convert the high pressure carbon dioxide fire extinguishing agent in the gas storing cylinder into low- temperature low-pressure pure liquid state carbon dioxide through the low temperature conversion device in the machine and fill it into the low-temperature fire extinguisher. It does not need heating, pressuring, and has safe,
reliable, rapid filling speed, accurate metering, high work efficiency etc advantages. It is an ideal filling equipment for carbon dioxide fire extinguisher production and maintenance factories.
Brief description:
Voltage: 220V 50Hz
Filling pressure:3 to 10 Mpa
Environment temperature: 5°C-45°C
Frozen arrange: more or less 10°C-15°C compared with the environment temperature.
Suitable for 2kg,3kg,5kg,7kg co2 fire extinguisher
Main Technical Parameters:
Filling time and filling amount error table of the filling machine.
| Item | MT2 | MT3 | MT5 | MT7 |
| Fire extinguishing agent weight (Kg) | 2—-0.15 | 3—-0.15 | 5—-0.2 | 7—-0.2 |
| Filling time(s) | ≤40 | ≤50 | ≤60 | ≤70 |
The power supply voltage adopts 220V 50HZ
Working Pressure: 3-10Mpa
Ambient temperature: 5°C-45°C
Freezing range: To be differed from normal temperature by10°C-15°C.

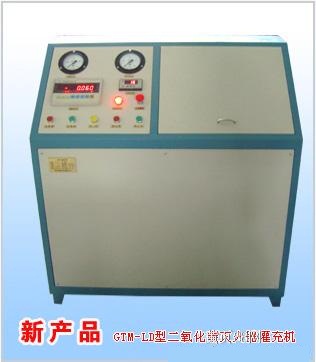

Photo:
Co2 gas filling machine :
GTM-D co2 gas filling machine of fire extingiusher :
GTM-D co2 gas filling machine is a special-purpose equipment for filling the carbon dioxide fire extinguishing agent automatically into model MT2-MT7 etc. portable type fire extinguisher.
This machine adopts low temperature freeze technique to convert the high pressure carbon dioxide fire extinguishing agent in the gas storing cylinder into low- temperature low-pressure pure liquid state carbon dioxide through the low temperature conversion device in the machine and fill it into the low-temperature fire extinguisher. It does not need heating, pressuring, and has safe,
reliable, rapid filling speed, accurate metering, high work efficiency etc advantages. It is an ideal filling equipment for carbon dioxide fire extinguisher production and maintenance factories.
Brief description:
Voltage: 220V 50Hz
Filling pressure:3 to 10 Mpa
Environment temperature: 5°C-45°C
Frozen arrange: more or less 10°C-15°C compared with the environment temperature.
Suitable for 2kg,3kg,5kg,7kg co2 fire extinguisher
Main Technical Parameters:
Filling time and filling amount error table of the filling machine.
| Item | MT2 | MT3 | MT5 | MT7 |
| Fire extinguishing agent weight (Kg) | 2—-0.15 | 3—-0.15 | 5—-0.2 | 7—-0.2 |
| Filling time(s) | ≤40 | ≤50 | ≤60 | ≤70 |
The power supply voltage adopts 220V 50HZ
Working Pressure: 3-10Mpa
Ambient temperature: 5°C-45°C
Freezing range: To be differed from normal temperature by10°C-15°C.
Photo:
