High Quality Mk5 Offshore Anchor

Inquire Add to Basket

  • DY250402

  • BV, CE, ISO9001, CCS, CCC

  • Inland and Coastal Boats

  • 4 Stroke

  • Ship Docking

  • DEYUAN MARINE

  • China

  • Iron and Steel

  • 1500kg-25000kg.

  • Anchors

  • Inboard

  • 3000-4400teu

  • ABS, GL, DNV, BV, CCS

  • 73160000

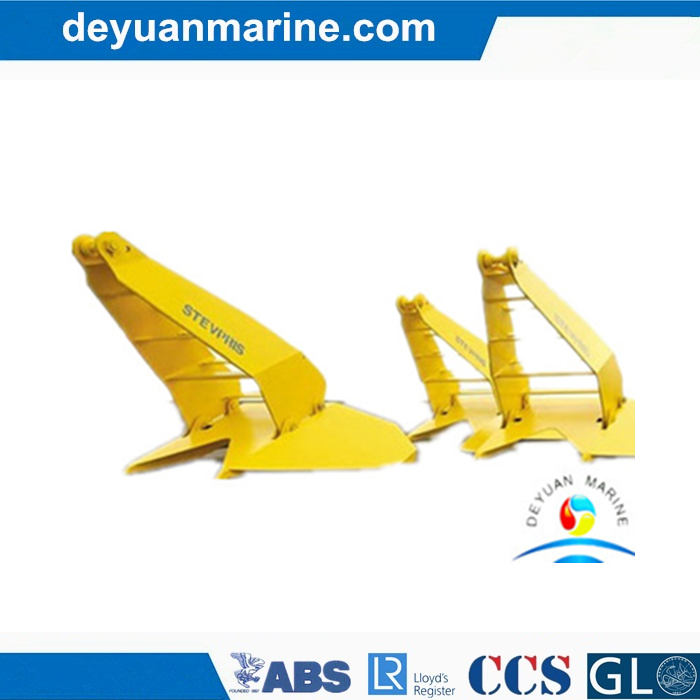

Mk5 Offshore Anchor
1. Stevpris MK5 ANCHOR.
2. Weight: 1500KG-25000KG
3. Certificate: ABS BV CCS DNV GL IRS KR LR NK RINA certificate.
Weight (kg)                                               Dimensions (mm)
A  B  C  E  F  H  T  S
1,500 2,954 3,184 1,812 1,505 271 1,230 493 DIA80
3,000 3,721 4,011 2,283 1,896 342 1,550 622 DIA90
5,000 4,412 4,756 2,707 2,248 406 1,837 738 DIA110
7,000 4,910 5,290 3,011 2,500 453 2,045 825 DIA117
8,000 5,161 5,563 3,166 2,629 474 2,149 862 DIA130
10,000 5,559 5,992 3,410 2,832 511 2,315 929 DIA140
12,000 5,908 6,368 3,624 3,010 543 2,460 988 DIA150
15,000 6,364 6,860 3,904 3,242 585 2,650 1,064 DIA170
18,000 6,763 7,290 4,149 3,446 622 2,816 1,131 DIA180
20,000 7,004 7,550 4,297 3,569 644 2,917 1,171 DIA190
22,000 7,230 7,794 4,436 3,684 665 3,011 1,209 DIA200
25,000 7,545 8,133 4,629 3,844 694 3,142 1,262 DIA200
