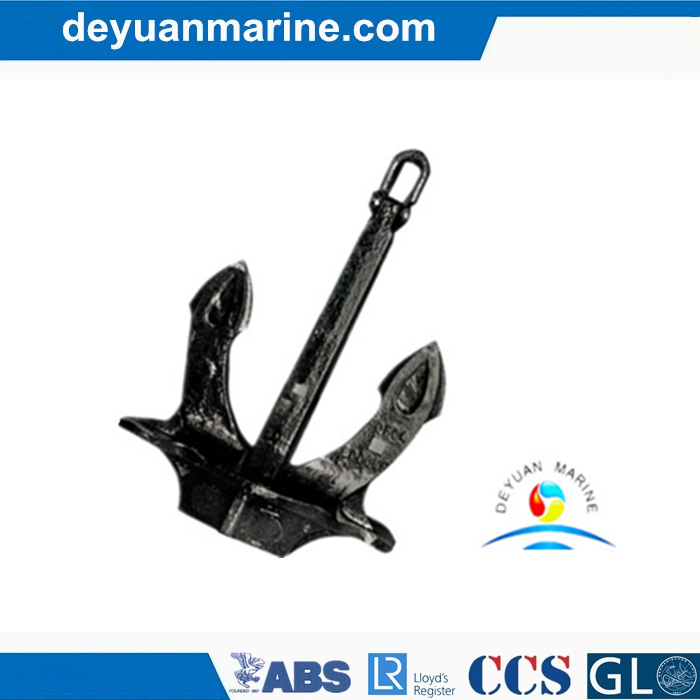

Marine Hall Anchor Type C

Inquire Add to Basket

  • DY250206

  • BV, CE, ISO9001, CCS, CCC

  • <1000kg

  • Inland and Coastal Boats

  • 4 Stroke

  • Ship Docking

  • DEYUAN MARINE

  • China

  • Iron and Steel

  • Hall Anchor

  • 40kgs-460000kgs.

  • Anchors

  • Inboard

  • 4400-4800teu

  • ABS, GL, DNV, BV, CCS

  • 73160000

Hall Anchor Type C
1. Material: Iron, steel.
2. Certificate: ABS, LR, DNV, GL, BV, NK, KR, CCS.
3. Weight: 40KGS-460000KGS.
4. Finish: Black Painted, galvanized.
Nominal Weight
of Hall Anchor(KG)		 H h h1 L L1 B1

A B C




780 1506 1506 1159 813 178 1160 813 535
900 1580 1580 1215 855 188 1220 855 560
1020 1645 1645 1268 891 195 1268 891 584
1140 1705 1705 1316 926 203 1319 926 605
1290 1778 1778 1378 965 211 1374 965 630
1440 1844 1844 1448 1001 219 1430 1001 655
1590 1906 1906 1511 1035 226 1475 1035 677
1740 1966 1966 1571 1068 234 1517 1068 698
1920 2031 2031 1602 1104 241 1568 1104 722
2100 2093 2093 1651 1136 249 1614 1136 743
2280 2150 2150 1716 1165 255 1657 1165 763
2460 2207 2207 1785 1194 262 1700 1194 784
2640 2259 2259 1843 1221 268 1741 1221 801
2850 2318 2318 1890 1253 275 1787 1253 822
3060 2374 2374 1935 1283 282 1832 1283 841
3300 2432 2432 1985 1317 288 1880 1317 862
3540 2490 2490 2032 1349 295 1926 1349 883
3780 2547 2547 2077 1376 302 1965 1376 902
4050 2610 2610 2125 1406 309 2008 1406 924
4320 2661 2661 2171 1435 316 2051 1435 743
4590 2712 2712 2216 1465 322 2093 1465 962
4890 2769 2769 2263 1498 329 2135 1498 984
5250 2836 2836 2317 1535 337 2185 1535 1008
5610 2899 2899 2369 1569 345 2234 1569 1031
6000 2965 2965 2422 1605 352 2284 1605 1054
6450 3037 _ 2482 1644 361 2340 1644 1080
6900

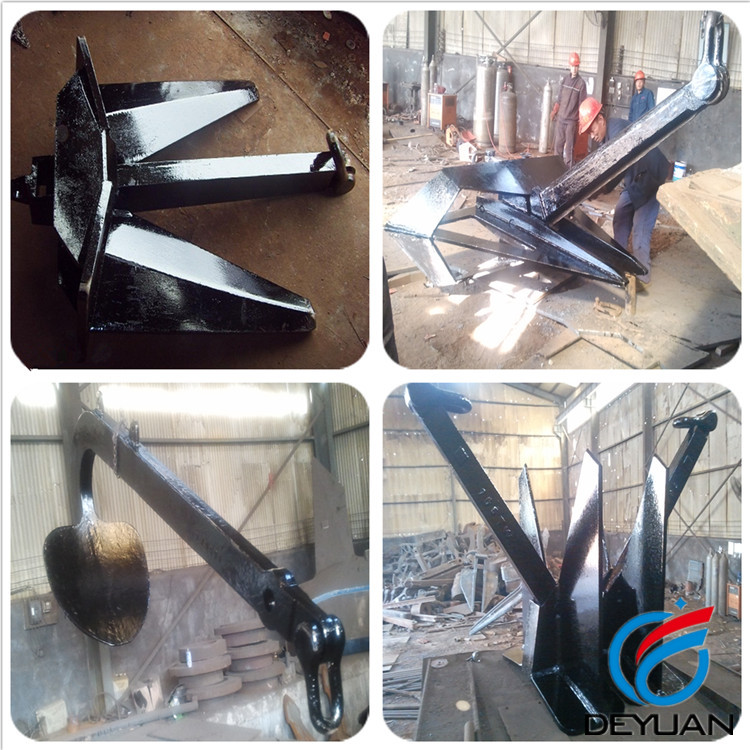

Marine Hall Anchor Type C
