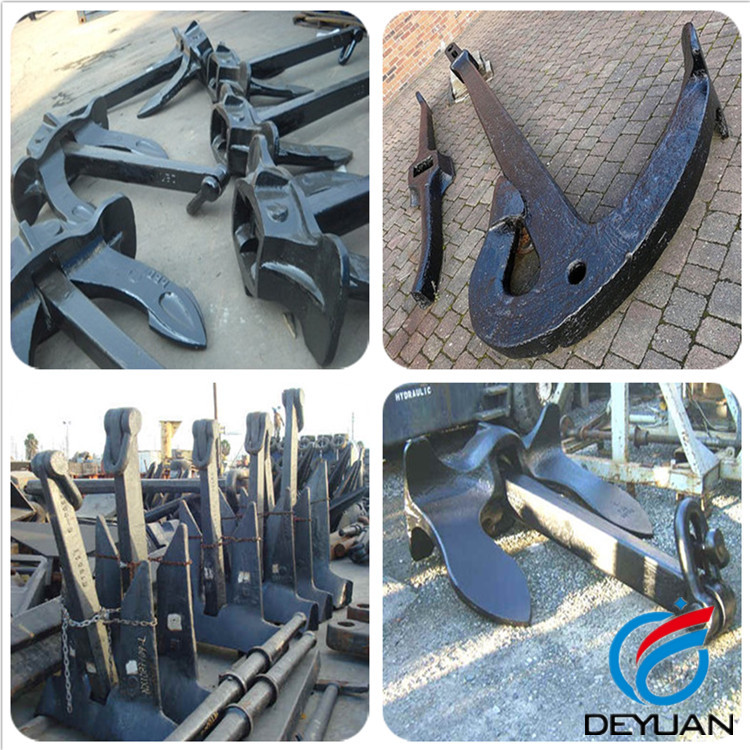

Stockless Anchor High Holding Power AC-14 Folding Anchor

Inquire Add to Basket

  • DY250101

  • LR, KR, GL, CS

  • <1000kg

  • Anchors

  • Inboard

  • >8000teu

  • ABS, GL, DNV, BV, CCS

  • 73160000

  • Stainless Steel

  • Folding Anchor

  • 180kgs-5850kgs

  • 4 Stroke

  • Ship Docking

  • DEYUAN MARINE

  • China

Stockless anchor high holding power AC-14 folding anchor stockless anchor

China Deyuan Marine Fitting Co., Ltd is a professional supplier of marine mooring equipment, such as marine anchor, anchor chain, chain stopper, mooring rope, mooring reel, marine bollard, marine chock, roller fairleads, chain cable clenches etc, pls contact us for more details.

AC-14 Anchor features:

1. Certificate: ABS, LR, CCS, BV, DNV, NK, KR, GL
2. Sizes: 180kgs-5850kgs
3. Nude package
4. Black tempered or Blue tempered

(KG)
Nominal weight		 A A1 B B1 B2 C
180 439 805 557 162 902 249
225 473 867 600 174 972 268
275 506 927 641 186 1039 287
340 543 995 688 200 1115 308
430 587 1076 744 216 1206 333
460 601 1100 760 221 1233 341
570 645 1182 817 237 1324 366
675 683 1250 864 251 1401 387
750 707 1295 895 260 1451 401
910 758 1381 955 277 1548 428
1044 794 1446 999 290 1620 456
1140 818 1489 1029 298 1668 469
1200 832 1515 1047 304 1697 477
1305 855 1558 1076 312 1745 491
1360 867 1579 1092 317 1769 498
1440 884 1610 1112 323 1803 507
1575 910 1659 1146 332 1858 523
1710 936 1705 1178 342 1910 537
1820 955 1740 1203 348 1950 548
2000 986 1796 1241 360 2012 556
2100 996 1826 1262 365 2045 566
2270 1022 1874 1295 375 2099 581
2475 1052 1928 1333 386 2160 598
2720 1086 1990 1375 398 2229 617
3000 1122 2056 1421 412 2303 637
3240 1151 2109 1458 422 2363 655
Stockless Anchor High Holding Power AC-14 Folding Anchor
Stockless Anchor High Holding Power AC-14 Folding Anchor
