Horizontal Centrifugal External Fire Pump For FIFI System

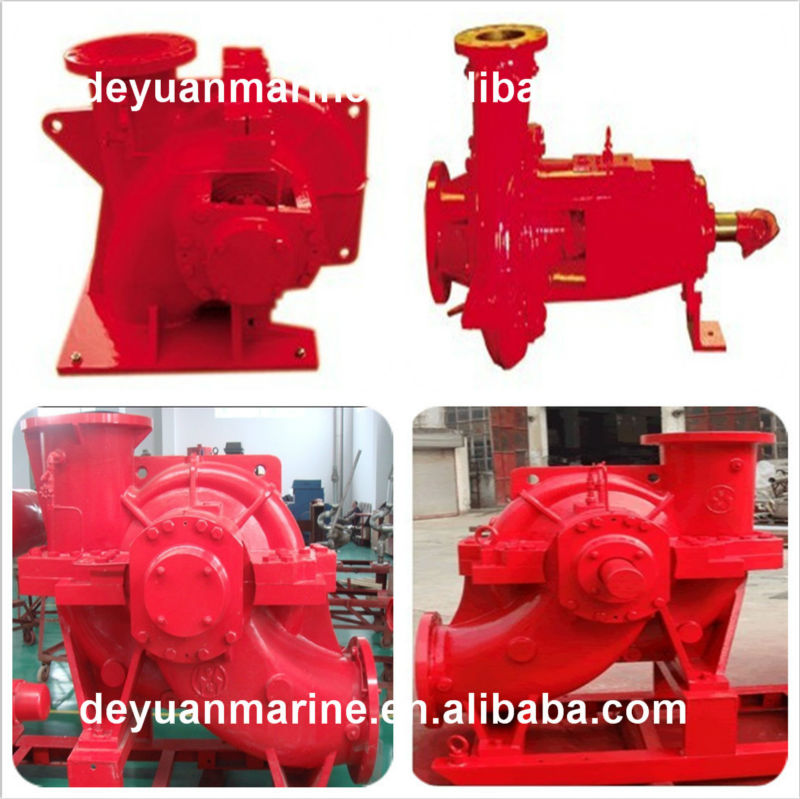

Horizontal Centrifugal External Fire Pump

*Model:SSCXB250-200.

*Medium:seawater.

*Capacity:600M3/h.

*Pump head:130m.

*Pump speed:2100r/min.

*Power absorbed:282KW.



Horizontal mounted single stage double side suction

top discharge centrifugal pum

Model:SSCXB250-200

Medium:seawater

Capacity:600M3/h

Pump head:130m

Pump speed:2100r/min

Power absorbed:282KW

Pump efficiency:80%

Dimension of pump inlet:DN250

Dimension of pump outlet:DN200

Material:

Pump shell:Nodular cast iron

Impeller:Ni-Al Bronze

Shaft:Stainless Steel

Bearing:SKF

Shaft sealing:Soft sealing
