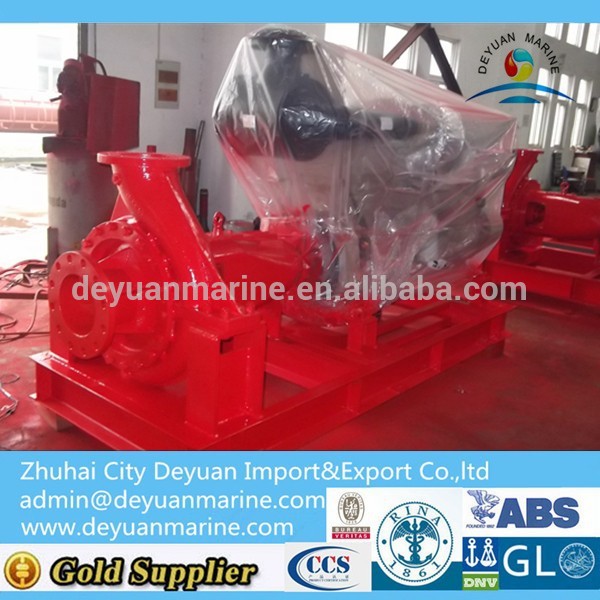

Marine External Fire Pump/Pump Set for FiFi System

Marine External Fire Pump





Marine External Fire Pump

1)Product:external fire pump for fifi system/Fire pump for fire fighting system

2)Type: Horizontal mounted single,centrifugal pump

3)Capacity:150M3/H

4)Certificate:CCS,RINA,ABS,GL,LR,RMRS etc

5)Model:SSCXB200-150

6)Brand:Deyuan Marine

7)Fit with CUMMINS ENGINE OR CAT Engine Or Weichai engine







*Fire PumpType: Horizontal mounted single stage double side suction

top discharge centrifugal pump

*Medium: Water &seawater

*Fire PumpWorking Temperature: 32°C

*External fire pump Capacity: Q=150m3 /h

*External fire pump Throw head: H=1.2Mpa

*Speed: 2300r/min
*Shaft: 123KW
*Inlet dimension: DN125
Outlet dimension: DN100
Material:
Case: HT200
Impeller: ZCuZn16Si4
Shaft: 1Cr18Ni9Ti
Sealing: Soft material
