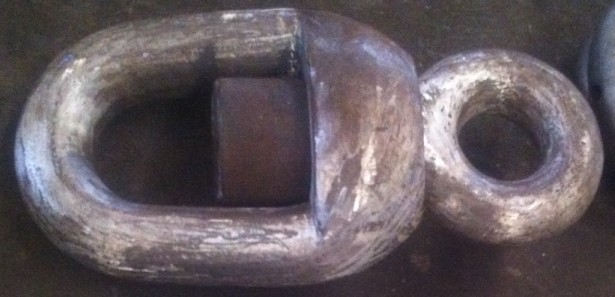

Marine Anchor Chain Studlink Chain Studless Chain Swivel and Shackle for Sale

Inquire Add to Basket

  • DY1805

  • 22mm~71mm

  • as Per Your Requirements

  • 22mm~71mm

  • Bituminous Paint

  • 14-36mm

  • Wooden Case

  • China

  • Stainless steel

  • Welded Chain

  • U1,U2,U3

  • CCS,ABS,Lr,BV,Nk,Rina,Kr

  • 130-905

  • deyuan

  • ccs

  • 63072000

Marine Anchor Chain Studlink Chain Studless Chain Swivel and Shackle for sale

1.Material:U1,U2,U3
2.Size:22mm~71mm
3.Certificate:CCS,ABS,LR,BV,NK,RINA,KR
4.Surface:bituminous paint
Marine Anchor Chain
China Deyuan Marine Fitting Co.,ltd is a professional supplier of marine mooring equipment,such as studlink anchor chain,studless anchor chain,chain cable,anchor,chain stopper,mooring rope,mooring reel,marine chock,marine bollard etc.Pls contact us for more details.

Chain Diameter
 		 Grade 2 Grade 3 Approx.mass
(27.5m)
proofload Break load proofload Break load
C=0.0098 C=0.0137 C=0.0137 C=0.0196
mm KN KN KN KN
14 82 116 116 165 130
16 107 150 150 216 170
17.5 127 179 179 256 189
19 150 211 211 301 226
20.5 175 244 244 349 263
22 200 280 280 401 303
24 237 332 332 476 370
26 278 389 389 556 439
28 321 449 449 642 496
30 368 514 514 735 564
32 417 583 583 833 635
34 468 655 655 937 724
36 523 732 732 1050 812
  581 812 812 1160 905
More size available,pls contact us for more details.

1.Material:U1,U2,U3.
2.Size:22mm~71mm.
3.Certificate:CCS,ABS,LR,BV,NK,RINA,KR.
4.Surface:bituminous paint.
Marine Chain Cable
China Deyuan Marine Fitting Co.,ltd is a professional supplier of marine mooring equipment,such as studlink anchor chain,studless anchor chain,chain cable,anchor,chain stopper,mooring rope,mooring reel,marine chock,marine bollard etc.Pls contact us for more details.

Chain Diameter
 		 Grade 2 Grade 3 Approx.mass
(27.5m)
proofload Break load proofload Break load
C=0.0098 C=0.0137 C=0.0137 C=0.0196
mm KN KN KN KN
14 82 116 116 165 130
16 107 150 150 216 170
17.5 127 179 179 256 189
19 150 211 211 301 226
20.5 175 244 244 349 263
22 200 280 280 401 303
24 237 332 332 476 370
26 278 389 389 556 439
28 321 449 449 642 496
30 368 514 514 735 564
32 417 583 583 833 635
34 468 655 655 937 724
36 523 732 732 1050 812
  581 812 812 1160 905
More size available,pls contact us for more details.

1.Material:U1,U2,U3.
2.Size:22mm~71mm.
3.Certificate:CCS,ABS,LR,BV,NK,RINA,KR.
4.Surface:bituminous paint.
Studlink Anchor Chain
China Deyuan Marine Fitting Co.,ltd is a professional supplier of marine mooring equipment,such as studlink anchor chain,studless anchor chain,chain cable,anchor,chain stopper,mooring rope,mooring reel,marine chock,marine bollard etc.Pls contact us for more details.

Chain Diameter
 		 Grade 2 Grade 3 Approx.mass
(27.5m)
proofload Break load proofload Break load
C=0.0098 C=0.0137 C=0.0137 C=0.0196
mm KN KN KN KN
14 82 116 116 165 130
16 107 150 150 216 170
17.5 127 179 179 256 189
19 150 211 211 301 226
20.5 175 244 244 349 263
22 200 280 280 401 303
24 237 332 332 476 370
26 278 389 389 556 439
28 321 449 449 642 496
30 368 514 514 735 564
32 417 583 583 833 635
34 468 655 655 937 724
36 523 732 732 1050 812
  581 812 812 1160 905
More size available,pls contact us for more details.

1.Material:U1,U2,U3
2.Size:22mm~71mm
3.Certificate:CCS,ABS,LR,BV,NK,RINA,KR
4.Surface:bituminous paint
Studless anchor chain
China Deyuan Marine Fitting Co.,ltd is a professional supplier of marine mooring equipment,such as studlink anchor chain,studless anchor chain,chain cable,anchor,chain stopper,mooring rope,mooring reel,marine chock,marine bollard etc.Pls contact us for more details.
Dia.
(mm)		 Outside Length
(mm)		 Outside Width
(mm)		 U2 U3 Weight
Proof Load
(KN)		 Breaking Load
(KN)		 Proof Load
(KN)		 Breaking Load
(KN)
(KG/27.5M)
16 96 56 66.2 132.3 92.42 184.83 138.14
17.5 105 61.25 78.89 157.78 110.55 221.1 165.8
19 114 66.5 93.6 187.2 130.32 260.64 194.9
20.5 123 71.8 108.64 217.27 151.7 303.42 227.13
22 132 77 125.4 250.9 174.4 349.4 262.29
24 144 84 149.9 298.9 207.9 415.8 312.26
26 156 91 175.4 350.8 244 488 366.76
28 168 98 203.8 406.7 283 566 423.36
30 180 105 234.2 467.5 324.9 649.8 486.85
32 192 112 265.6 531.2 369.6 739.3 554.7
34 204 119 299.9 599.8 417.3 834.6 628.08
36 216 126 336.1 672.3 467.8 935.7 701.54
38 228 133 374.4 748.7 521.3 1042.5 781.92
40 240 140 414.5 829.1 577.6 1155.2 861.17
42 252 147 457.7 915.3 636.8 1273.6 950.94
44 264 154 502.7 999.6 698.9 1398 1053
46 276 161 548.8 1097.6 763.9 1527.8 1142
48 288 168 597.8 1195.6 831.7 1663.5 1245
50 300 175 648.8 1293.6 902.5 1805 1348.5
Marine Anchor Chain Studlink Chain Studless Chain Swivel and Shackle for Sale Marine Anchor Chain Studlink Chain Studless Chain Swivel and Shackle for Sale Marine Anchor Chain Studlink Chain Studless Chain Swivel and Shackle for Sale Marine Anchor Chain Studlink Chain Studless Chain Swivel and Shackle for Sale
More types of mooring equipments with competitive price can be offered, please contact us for more details.
