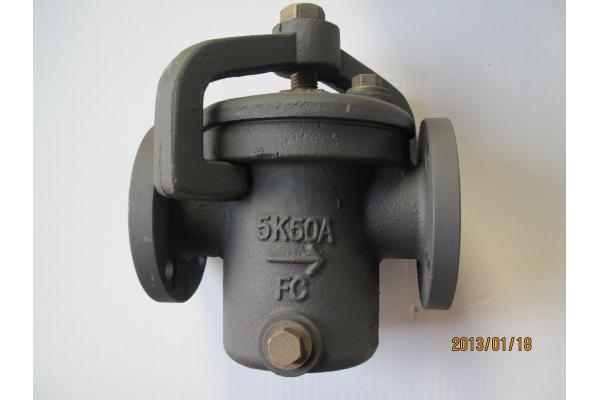

Marine Basket Sea Water Strainer JIS F7121 S Type

Inquire Add to Basket

  • DEYUAN

  • Standard

  • strainer

  • Low Pressure, 5K/10K

  • Manual

  • Casting, Cast Iron

  • Normal Temperature

  • Water

  • 40-100

  • China (Mainland)

  • JIS F7121S

  • OEM

  • one year

  • JIS F7121

  • each piece with plastic bag, and the outside case is the plywood case.

  • 10-60days according to the quantity

Specifications


Sea Water Strainer
1)good quality with test certificate
2)with one year's warranty
3)stainless steel filter



Marine Basket Sea Water Strainer JIS 7121 5K

Marine Can Water Filter JIS F7121 also can be called as marine sea water filter(strainer) or marine basket water filer(strainer).

Design Standard: JIS F7121-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 0.3Mpa

Flange size as per JIS B2220 - 5K/10K

Type: S, LA, LB



Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Strainer: Stainless Steel (SUS304)

Gasket: non-asbestos

Yoke: FCD450

Air Vent Plug: Brass

Drain Plug: Brass





Main Size List(mm):

DN
d L L1 D C No. h t H
25 25 170 85 155 120 4 19 20 191
32 32 190 95 175 140 4 19 22 218
40 40 190 95 185 150 8 19 22 218
50 50 200 100 210 175 8 19 24 239
65 65 250 125 250 210 8 19 24 306
80 80 270 135 280 240 8 23 26 341
100 100 320 160 330 290 12 23 26 401
