DEYUAN
Standard
strainer
Low Pressure, 5K/10K
Manual
Casting, Cast Iron
Normal Temperature
Water
40-400
China (Mainland)
JIS F7121LA/LB
OEM
one year
JIS F7121
each piece with plastic bag, and the outside case is the plywood case.
10-60days according to the quantity

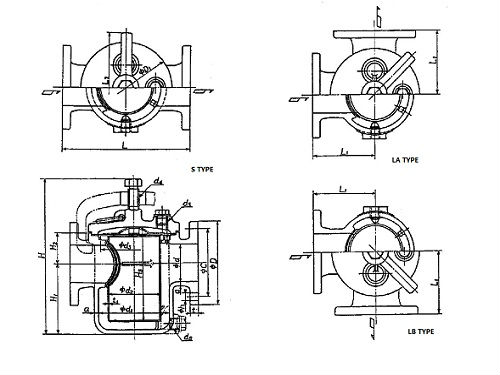

Marine Basket Sea Water Strainer JIS F7121 L Type
Marine Can Water Filter JIS F7121 also can be called as marine sea water filter(strainer) or marine basket water filer(strainer).
Design Standard: JIS F7121-1996
Test Standard: JIS 7200-1996
Hydraulic Test Pressure: Body- 0.3Mpa
Flange size as per JIS B2220 - 5K/10K
Type: S, LA, LB
Body: Cast Iron (FC200)
Bonnet: Cast Iron (FC200)
Strainer: Stainless Steel (SUS304)
Gasket: non-asbestos
Yoke: FCD450
Air Vent Plug: Brass
Drain Plug: Brass
DN | d | L | L1 | D | C | h | t | H |
25 | 25 | 170 | 85 | 95 | 75 | 12 | 14 | 191 |
32 | 32 | 190 | 95 | 115 | 90 | 15 | 16 | 218 |
40 | 40 | 190 | 95 | 120 | 95 | 15 | 16 | 218 |
50 | 50 | 200 | 100 | 130 | 105 | 15 | 16 | 239 |
65 | 65 | 250 | 125 | 155 | 130 | 15 | 18 | 306 |
80 | 80 | 270 | 135 | 180 | 145 | 19 | 18 | 341 |
100 | 100 | 320 | 160 | 200 | 165 | 19 | 20 | 401 |
125 | 125 | 400 | 200 | 235 | 200 | 19 | 20 | 485 |
150 | 150 | 460 | 230 | 265 | 230 | 19 | 22 | 575 |
200 | 200 | 550 | 275 | 320 | 280 | 23 | 24 | 665 |
250 | 250 | 680 | 340 | 385 | 345 | 23 | 26 | 825 |
300 | 300 | 760 | 380 | 430 | 390 | 23 | 28 | 920 |
350 | 350 | 820 | 410 | 480 | 435 | 25 | 30 | 1030 |
400 | 400 | 880 | 440 | 540 | 495 | 25 | 30 | 1135 |
Marine Basket Sea Water Strainer JIS F7121 L Type
Marine Can Water Filter JIS F7121 also can be called as marine sea water filter(strainer) or marine basket water filer(strainer).
Design Standard: JIS F7121-1996
Test Standard: JIS 7200-1996
Hydraulic Test Pressure: Body- 0.3Mpa
Flange size as per JIS B2220 - 5K/10K
Type: S, LA, LB
Body: Cast Iron (FC200)
Bonnet: Cast Iron (FC200)
Strainer: Stainless Steel (SUS304)
Gasket: non-asbestos
Yoke: FCD450
Air Vent Plug: Brass
Drain Plug: Brass
DN | d | L | L1 | D | C | h | t | H |
25 | 25 | 170 | 85 | 95 | 75 | 12 | 14 | 191 |
32 | 32 | 190 | 95 | 115 | 90 | 15 | 16 | 218 |
40 | 40 | 190 | 95 | 120 | 95 | 15 | 16 | 218 |
50 | 50 | 200 | 100 | 130 | 105 | 15 | 16 | 239 |
65 | 65 | 250 | 125 | 155 | 130 | 15 | 18 | 306 |
80 | 80 | 270 | 135 | 180 | 145 | 19 | 18 | 341 |
100 | 100 | 320 | 160 | 200 | 165 | 19 | 20 | 401 |
125 | 125 | 400 | 200 | 235 | 200 | 19 | 20 | 485 |
150 | 150 | 460 | 230 | 265 | 230 | 19 | 22 | 575 |
200 | 200 | 550 | 275 | 320 | 280 | 23 | 24 | 665 |
250 | 250 | 680 | 340 | 385 | 345 | 23 | 26 | 825 |
300 | 300 | 760 | 380 | 430 | 390 | 23 | 28 | 920 |
350 | 350 | 820 | 410 | 480 | 435 | 25 | 30 | 1030 |
400 | 400 | 880 | 440 | 540 | 495 | 25 | 30 | 1135 |
