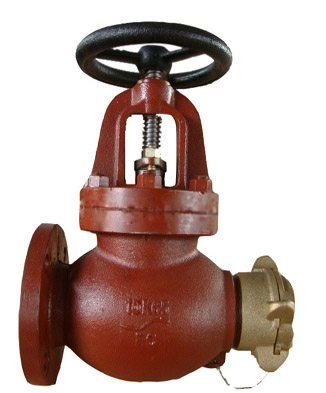

Marine Cast Iron Globe Hose Valve JIS F7333 5K/10K with Nakajima Cap

Inquire Add to Basket

  • DEYUAN

  • Standard

  • Stop

  • Low Pressure, 5K/10K

  • Manual

  • Casting, Cast Iron

  • Normal Temperature

  • Water

  • 50-65

  • China (Mainland)

  • JIS F7333

  • OEM

  • one year

  • JIS F7333

  • Nakajima

  • each piece with plastic bag, and the outside case is the plywood case.

  • 10-60days according to the quantity



Marine Cast Iron Globe Hose Valve JIS F7333 5K/10K wtih Nakajima Cap:

Design Standard: JIS F7333

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: 5K: Body- 1.05Mpa, Seat-0.77Mpa, 10K: body-2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 -5K or 10K

*With Nakajima Bronze/Brass coupling





Main Material:

Body & Bonnet: Cast Iron (FC200)

Seat & Disc: Bronze (BC6) or Stainless Steel (SCS2)

Stem: Brass (C3771BD) or Stainless Steel (SUS403)

Packing Gland: Bronze (BC6) or Stainless Steel (SCS2)

Coupling: Bronze or Brass

Handwheel: Cast Iron (FC200)





Main Size List(mm):

IMPA CODE DN k d L1 D C n-d t H D2 D3 L L2 Weight(kg)
751731 50 5 50 165 130 105 4-15 16 270 160 M64X2 105 110 14.7
751732 10 50 170 155 120 4-19 20 285 160 M64X2 110 115 18.9
751733 65 10 65 200 175 140 4-19 22 310 200 M80X2 135 125 28.2
