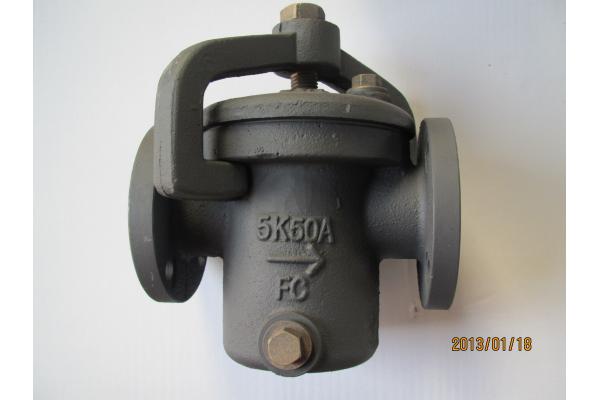

Marine Cast Iron Mud Box JIS F7203 S Type 5K

Inquire Add to Basket

  • DEYUAN

  • Standard

  • Strainer

  • Low Pressure, 5K/10K

  • Manual

  • Casting, Cast Iron

  • Normal Temperature

  • Water

  • 40-80

  • China (Mainland)

  • JIS F7203S

  • OEM

  • one year

  • JIS F7203

  • each piece with plastic bag, and the outside case is the plywood case.

  • 10-60days according to the quantity

Specifications


Marine Cast Iron Mud Box:
1)good quality with test certificate
2).with one year's warranty
3) Body can be with galv



Marine Cast Iron Mud Box JIS F7203 S Type 5K:

Design Standard: JIS F7203-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 0.1Mpa

Flange size as per JIS B2220 - 5K





Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Cover Push: Cast Iron (FC200)

Strainer: SS400 or SUS304





Main Size List(mm):

DN d L D C No of bolt hole h t E
40 40 90 120 95 4 15 16 145
50 50 120 130 105 4 15 16 145
65 65 150 155 130 4 15 18 180
80 80 160 180 145 4 19 18 195
100 100 190 200 165 8 19 20 225
125 125 235 235 200 8 19 20 275
150 150 280 265 230 8 19 22 320
200 200 330 320 280 8 23 24 405
250 250 380 385 345 12 23 26 525
