DEYUAN
Standard
Check
Low Pressure, 16K
Manual
Casting, Cast Iron
Normal Temperature
Water
50-200
China (Mainland)
JIS F7377
OEM
one year
JIS F7377
each piece with plastic bag, and the outside case is the plywood case.
10-60days according to the quantity

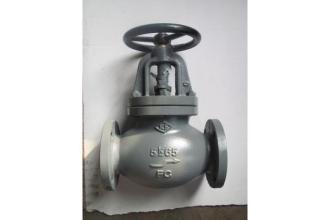

Marine Cast Iron Screw Down Check Globe Valve JIS F7377 16K:
Marine Screw Down Check Globe Vavle also can be called as SDNR Globe Valve or SDNR valve. Cast Iron SDNR valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.
Design Standard: JIS F7377-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 3.3Mpa, Seat-2.42Mpa
Flange size as per JIS B2220 - 16K
Body: Cast Iron (FC200)
Bonnet: Cast Iron (FC200)
Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)
Stem: C3771BD (Brass) or SUS403
Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Gasket: non-asbestos
IMPA CODE | DN | L | D | C | No of bolt hole | h | t | H | D2 | Weight(kgs) |
751151 | 50 | 220 | 155 | 120 | 8 | 19 | 20 | 285 | 160 | 19.6 |
751152 | 65 | 270 | 175 | 140 | 8 | 19 | 22 | 310 | 200 | 28.3 |
751153 | 80 | 300 | 200 | 160 | 8 | 23 | 24 | 340 | 224 | 40.4 |
751154 | 100 | 350 | 225 | 185 | 8 | 23 | 26 | 385 | 250 | 56.9 |
751155 | 125 | 430 | 270 | 225 | 8 | 25 | 26 | 455 | 315 | 89.5 |
751156 | 150 | 500 | 305 | 260 | 12 | 25 | 28 | 510 | 355 | 123 |
751156 | 200 | 570 | 350 | 305 | 12 | 25 | 30 | 630 | 450 | 188 |
