Marine Cast Iron Wafer Butterfly Valve JIS F7480 with Lever Operation

Inquire Add to Basket

  • DEYUAN

  • Standard

  • Butterfly

  • Low Pressure, 5K/10k/16k

  • Manual

  • Casting, Cast Iron

  • Normal Temperature

  • Water, Oil, Gas

  • 40-1200

  • China (Mainland)

  • JIS F7480

  • OEM

  • one year

  • JIS F7480

  • each piece with air bubble bag, and the outside case is the plywood case.

  • 10-60days according to the quantity



Marine Cast Iron Wafer Butterfly Valve JIS F7480  with Lever Operation:

Size: DN40-DN1200

Max Working Pressure: 5K/10K/16K

Top Flange: ISO5211

Operation Type: Lever or Worm Gear



Main Material:

1-Body: Cast Iron or Ductile Iron

2-Disc: DI or WCB with galv, Stainless Steel, Bronze

3-Pin: Stainless Steel

4-Seat: NBR, EPDM,CR,FKM,VITION,PTFE

5-Stem: Stainless Steel

6-Busing: PTFE

7-O ring: NBR

8-Indicator: Carbon Steel

9-Lever: Malleable Iron

10-Bolt: Carbon Steel



The Service Temperature for Seat Material:

Rubber Seat Material Service Temperature range °C Kind of Fluid
NBR 0-70 sea water, fresh water, bilge, ballat,liquefied gas,lubricating oil,fuel oil,cargo oil,hydraulice oil
CR 0-70 air
EPDM 0-120 sea water, fresh water, acid gas
FKM 0-90 cargo oil





Main Size List(mm):

Size A B C D d0 K E 4-d L D1 4-d1 B1
40 120 70 34 41.8 12.6 65 50 7 26 105 19 11
50 140 80 42 52.9 12.6 90 70 10 30 120 19 11
65 150 89 44.7 64.5 12.6 90 70 10 30 140 19 11
80 158 95 45.2 78.8 12.6 90 70 10 30 150 19 11
100 176 114 52 104 15.77 90 70 10 30 175 19 11
125 190 127 54.4 123.3 18.92 90 70 10 30 210 23 14
150 211 139 55.8 155.1 18.92 90 70 10 30 240 23 14
200 235 176 60.6 202.5 22.1 125 102 12 40 290 23 17
250 265 203 65.6 250.5 28.45 125 102 12 40 355 25 22
300 305 242 76.9 301.5 31.6 125 102 12 40 400 25 22



*The size is for 10K for your reference.

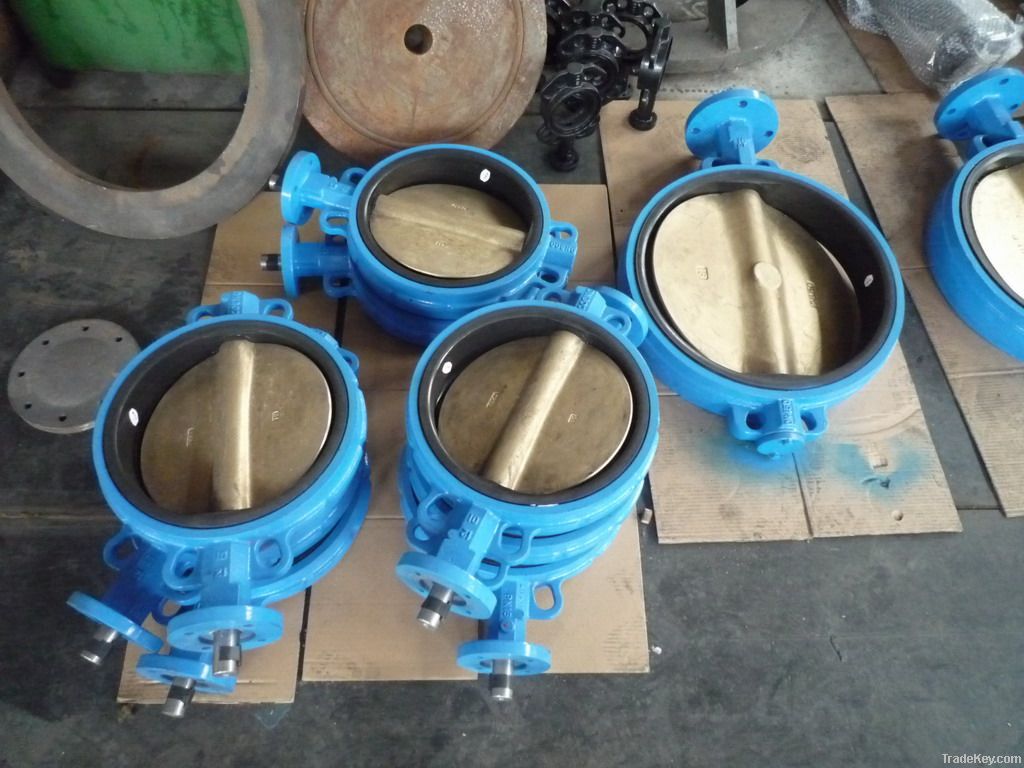

marine-wafer-butterfly-valve
