Marine Cast Steel Angle Storm Valve JIS F3060R 10K

Inquire Add to Basket

  • DEYUAN

  • Standard

  • Stop

  • Low Pressure, 10K

  • Manual

  • Casting, Cast Steel

  • Normal Temperature

  • Water

  • 50-200

  • China (Mainland)

  • JIS F3060R

  • OEM

  • one year

  • JIS 3060R

  • each piece with plastic bag, and the outside case is the plywood case.

  • 10-60days according to the quantity



Marine Cast Steel  Angle Storm Valve JIS F3060R 10K:

Design Standard: JIS F3060-1996

Test Standard: JIS 7400-1996

Flange size as per JIS B2220 - 10K



Main Material:

1-Body: Cast Steel (SC480)

2-Seat: Rubber(NBR)

3-Disc: Bronze (BC6)

4-Stem: Stainless Steel (SUS403)



Main Size List(mm):

DN L1 H D C No. h t D2
50 90 170 155 120 4 19 20 100
65 110 200 175 140 4 19 22 100
80 120 220 185 150 8 19 22 125
100 130 250 210 175 8 19 24 125
125 150 270 250 210 8 19 24 125
150 170 310 280 240 8 23 26 125
200 190 400 330 290 12 23 26 125

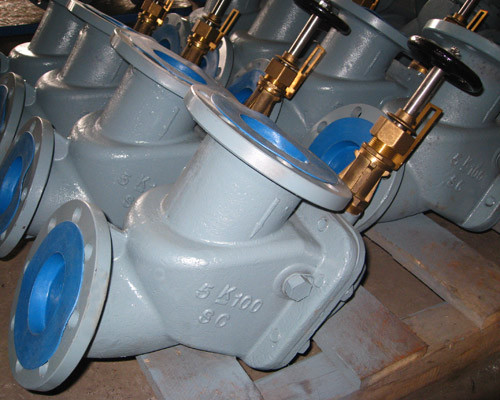

jis_f3060_marine_cast_steel_angle_storm_valve
