Marine Cast Steel Angle Storm Valve JIS F3060R 5K

Inquire Add to Basket

  • DEYUAN

  • Standard

  • Stop

  • Low Pressure, 5K

  • Manual

  • Casting, Cast Steel/BC

  • Normal Temperature

  • Water

  • 50-200

  • China (Mainland)

  • JIS F3060R

  • OEM

  • one year

  • JIS 3060R

  • each piece with plastic bag, and the outside case is the plywood case.

  • 10-60days according to the quantity

Specifications


Marine Angle Storm Valve
1)good quality with test certificate
2).with one year's warranty
3)CCS,DNV, BV,ABS,RINA certificate



Marine Cast Steel  Angle Storm Valve JIS F3060R 5K:

Design Standard: JIS F3060-1996

Test Standard: JIS 7400-1996

Flange size as per JIS B2220 - 5K





Main Material:

1-Body: Cast Steel (SC480)

2-Seat: Rubber(NBR)

3-Disc: Bronze (BC6)

4-Stem: Stainless Steel (SUS403)





Main Size List(mm):

DN L1 H D C No. h t D2
50 90 170 130 105 4 15 16 100
65 110 200 155 130 4 15 16 100
80 120 220 180 145 4 19 18 125
100 130 250 200 165 8 19 20 125
125 150 270 235 200 8 19 20 125
150 170 310 265 230 8 19 22 125
200 190 400 320 280 8 23 24 125

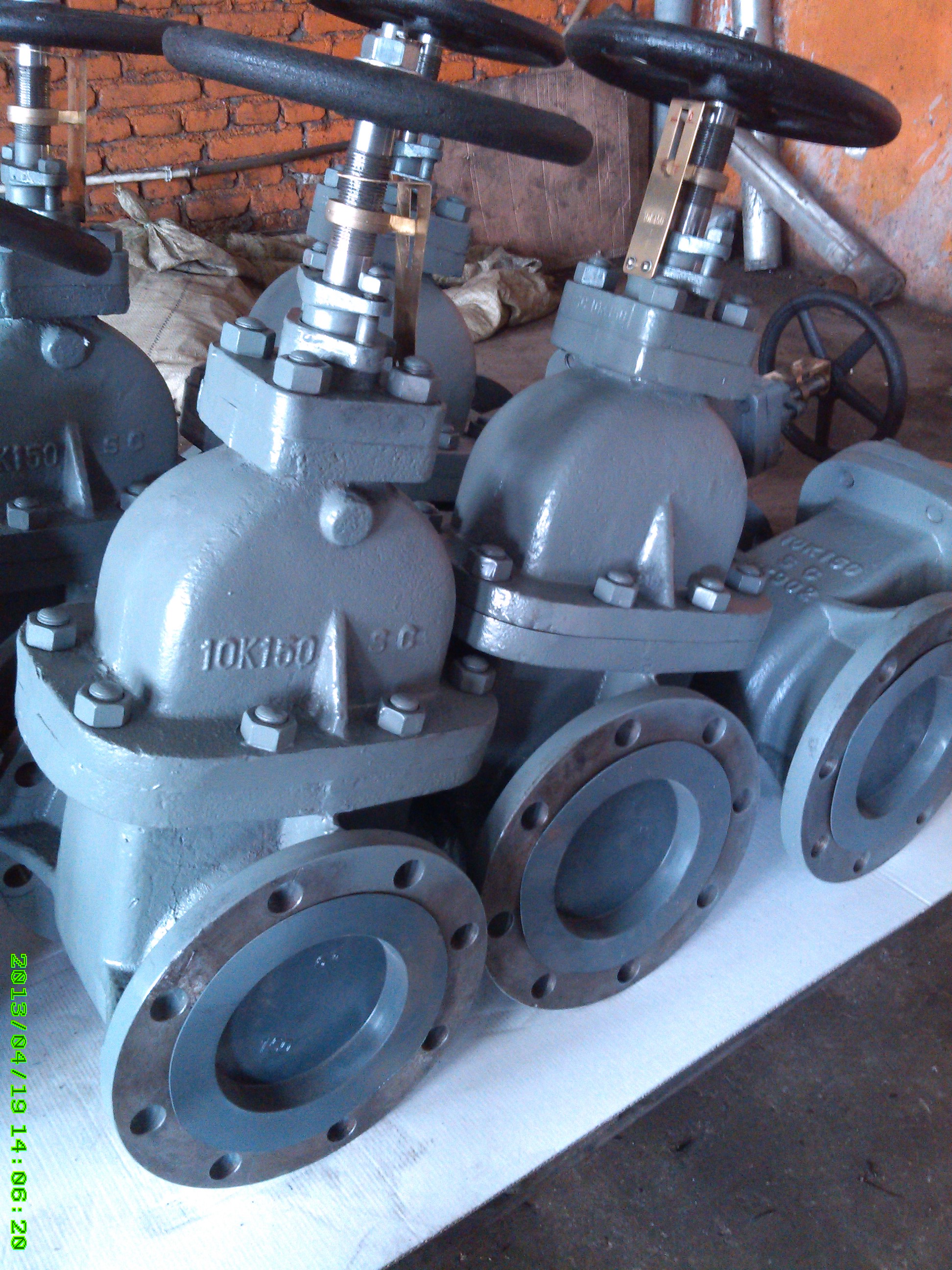

 cfcd8794bf44c625b6586f53c181
