DEYUAN
Standard
Stop
Low Pressure, 1.0Mpa,1.6Mpa, 2.5Mpa, 4.0Mpa, 6.4Mpa
Manual
Casting, Cast Steel
Normal Temperature
oil & steam
20-400
China (Mainland)
GB/T584-2008
DEYUAN
One Year
GB/T584-2008
plywood case
15-60days according to the quantity

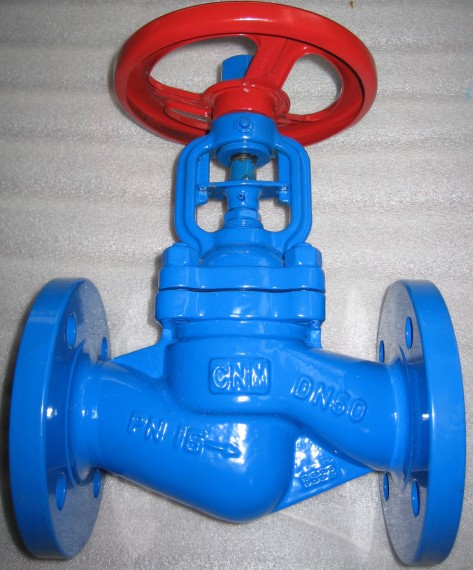

Marine Cast Steel Globe Valve GB/T584-2008 Type A/AS:
Design Standard:GB/T584-2008
Test Standard: GB600
Flange size as per GB569,GB2501
*Marine Globe Valve also can be called Marine Stop Valve.
Nominal Pressure(Mpa) | Nominal Diameter(mm) | Applicalbel Medium |
1.0 | 65~300 | fresh water, lubrication oil, fuel oil, steam not over 300°C |
1.6 | 65~250 | |
2.5 | 20~150 | |
4.0 | 65~100 | fresh water, lubrication oil, fuel oil, steam not over 400°C |
6.4 | 20~50 |
Body-Cast Steel(ZG275-485)
Bonnet-Cast Steel(ZG275-485)
Disc-Carbon Steel (20#)
Stem-Stainless Steel(20Cr13)
Marine Cast Steel Globe Valve GB/T584-2008 Type A/AS:
Design Standard:GB/T584-2008
Test Standard: GB600
Flange size as per GB569,GB2501
*Marine Globe Valve also can be called Marine Stop Valve.
Nominal Pressure(Mpa) | Nominal Diameter(mm) | Applicalbel Medium |
1.0 | 65~300 | fresh water, lubrication oil, fuel oil, steam not over 300°C |
1.6 | 65~250 | |
2.5 | 20~150 | |
4.0 | 65~100 | fresh water, lubrication oil, fuel oil, steam not over 400°C |
6.4 | 20~50 |
Body-Cast Steel(ZG275-485)
Bonnet-Cast Steel(ZG275-485)
Disc-Carbon Steel (20#)
Stem-Stainless Steel(20Cr13)
