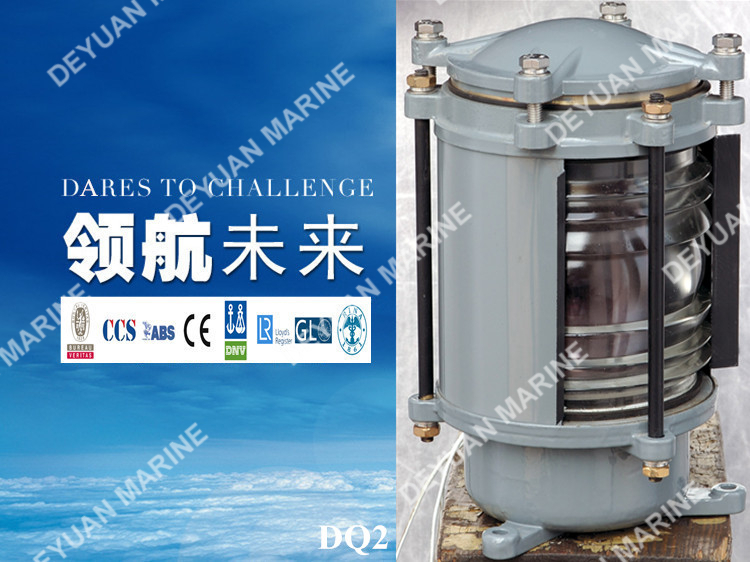

Marine Diving Navigation Port Light DQ2
Marine Diving Navigation Port Light DQ2
Application:
They are used for the conventional powered submarine,nuclear-powered submarine to prevent collision as the lighting signal,
formation sailing signal,anchor signal.applied to dive under the water 400m.
Characteristics:
1.The shell,shell ring and cover all founded by silicon brass,have big compressive strength,can withstand the immersion corrosion
ability of the seawater,good radiation performance.
2.The material of seal is neoprene,have the function of oil-resistant,pressure-resistant,mildewproof and antiseptic-resistant,can
prolong using life-span.
3.The parts of the lamp holder is high temperature resistant,moist resistant,mildew resistant,good insulating performance,
shock resistant,good structural strength and so on.
4.Diving navigation light can endure 6Mpa pressure,can dive under the water 400m.
Type | Name | Visibility | Level arc | Cable outside Diameter | Lamp Holder | Bulb | Color | Weight |
DQ2 | Port light | 3n.m | 112.5° | Φ20 | B22d | 220V/120W | red | 14.6kg |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
