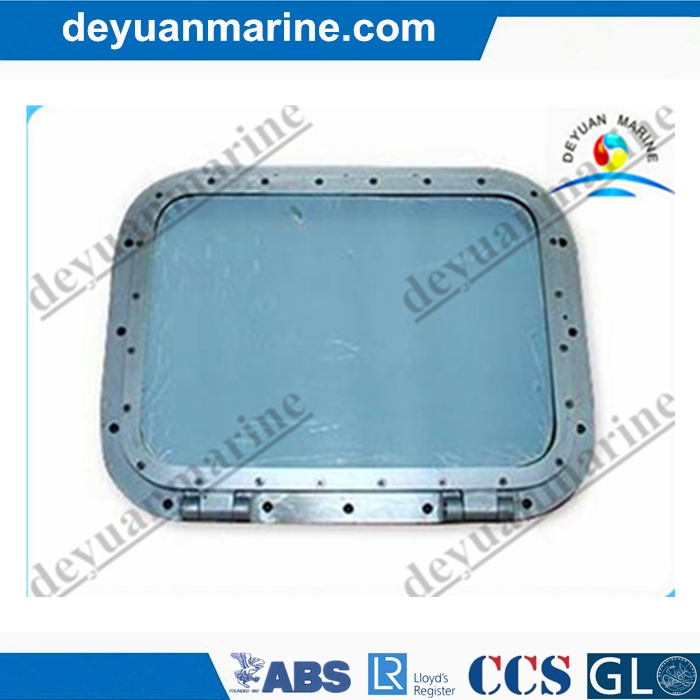

Marine Fireproof Rectangular Windows

Inquire Add to Basket

  • DY190202

  • 485*630*R115

  • 395*540*R70

  • ABS, GL, DNV, BV, CCS

  • Nominal Size

  • 487*632

  • DEYUAN MARINE

  • China

Marine Fireproof rectangular windows:

It is applied to various types of tankers carring oil with flash point of 60Celsius degree, drilling rigs, LPG
Carries and chemical carries etc.

China Deyuan Marine Fitting Co., Ltd is a leading supplier of marine outfitting equipment, such as marine steel doors, marine aluminum door, marine windows, marine hatch cover, marine pilot rope ladder, embarkation rope ladder, gangway ladder, bulwark ladder etc.
No. Nominal size
W*H		 Opening size
of casing wall		 Size of frame Weight(kg) Size of outline
E F
1 355*500 485*630*R115 487*632 10 8 395*540*R70
2 450*630 580*760*R165 582*762 12 8 490*67*R120
3 500*710 630*840*R165 632*842 15 10 540*750*R120
4 900*630 1030*840*R165 1032*762 15 12 940*670*R120
5 1100*710 1230*840*R165 1232*842 19 12 1140*750*R120
6 1200*800 1330*930*R165 1332*932 19 15 1240*840*R120

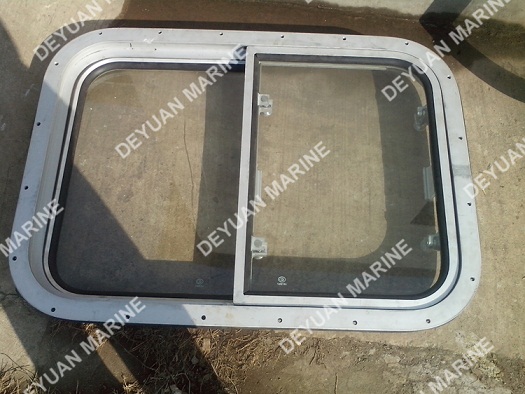

Marine Fireproof Rectangular Windows
Marine Fireproof Rectangular Windows
Marine Fireproof Rectangular Windows
