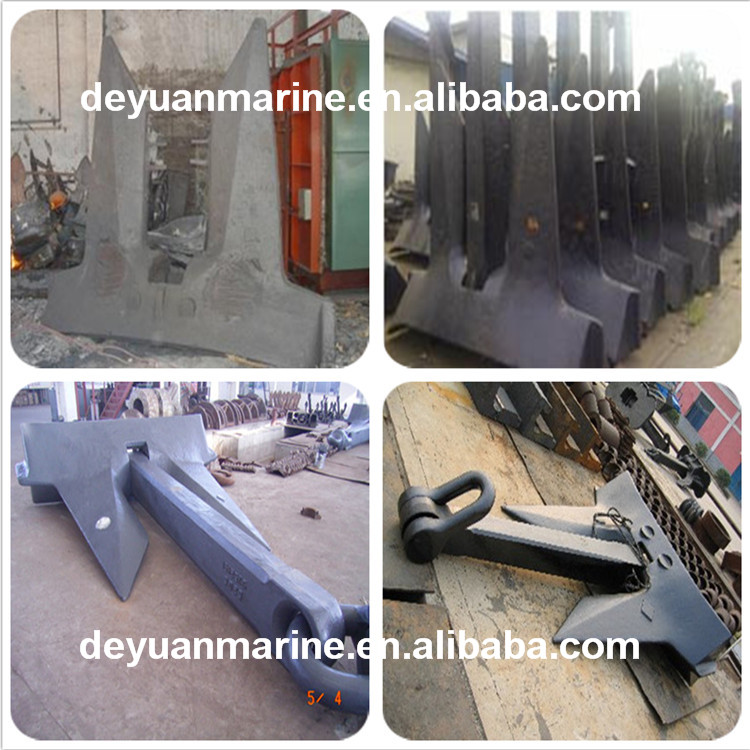

Marine Hall Anchor Type C for Sale

Marine Hall Anchor Type C for sale

1. Material: iron, steel.

2.Certificate: ABS, LR, DNV, GL, BV, NK, KR, CCS.

3. Weight: 40KGS-460000KGS.

4.Finish: Black Painted, galvanized.

Nominal Weight of Hall Anchor(KG)	H			h	h1	L	L1	B1
	A	B	C
780	1506	1506	1159	813	178	1160	813	535
900	1580	1580	1215	855	188	1220	855	560
1020	1645	1645	1268	891	195	1268	891	584
1140	1705	1705	1316	926	203	1319	926	605
1290	1778	1778	1378	965	211	1374	965	630
1440	1844	1844	1448	1001	219	1430	1001	655
1590	1906	1906	1511	1035	226	1475	1035	677
1740	1966	1966	1571	1068	234	1517	1068	698
1920	2031	2031	1602	1104	241	1568	1104	722
2100	2093	2093	1651	1136	249	1614	1136	743
2280	2150	2150	1716	1165	255	1657	1165	763
2460	2207	2207	1785	1194	262	1700	1194	784
2640	2259	2259	1843	1221	268	1741	1221	801
2850	2318	2318	1890	1253	275	1787	1253	822
3060	2374	2374	1935	1283	282	1832	1283	841
