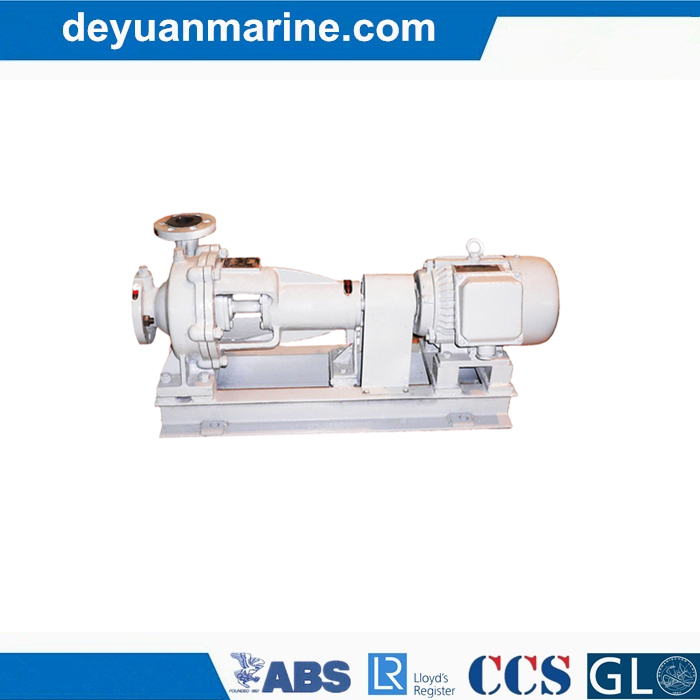

Marine Horizontal Centrifugal Pump for Fire Control

Inquire Add to Basket

  • DY790878

  • as User′s Option

  • CCS

  • as User′s Option

  • Deyuan

  • China

Marine Horizontal Centrifugal Pump For Fire Control

China Deyuan Marine Fitting Co., Ltd are leading supplier of marine pumps, such as marine diesel emergency fire pump, vortex marine water pump, marine centrifugal water pump etc. Pls contact us for more details.
CWL series marine horizontal centrifugal pump are applicable to fire control, cooling and sanitation and applied to industries, to city water supply and drain, and also to angricultural and orchard irrigation.
The pump rotates anticlockwise viewed from motor.
Type (50HZ,3phase,380v) main technical parameter Power (kw)
Capacity
(m3/h)		 Head
(m)		 Speed
R/min		 NPSHR
(m)		 Shaft power(kw)
32 CWL-4 2 20.2 2900 4.2
1.1
4 21 4.1 0.74
4.8 20.9 4.1
32CWL-3 2 31 2900 3.0
1.5
4 30 2.5 0.99
4.8 29.2 2.8
40CWL-5 4 22.2 2900 4.4
1.1
8 21 3.0 0.85
9.6 20 3.1
40CWL-4 4 32.3 2900 3.6
2.2
8 30 2.6 1.31
9.6 28.5 2.5
40CWL-3 4 43 2900 3.0
3
8 42 2.5 2.13
9.6 41 2.9
50CWL-6 6 22.2 2900 2.8
1.5
12 21 2.0 1.16
14.4 19.8 3.0
50CWL-4.5 6.0 31.5 2900 6.0
3
12 30 3.6 1.78
14.4 28.0 3.3
50CWL-4 6 43.7 2900 2.8
4
12 42 3.4 2.75
14.4 40.4 4.1







50CWL-8 16.5 22.8 2900 2.2
3
21 21 2.2 1.91
25.2 19 2.6
50CWL-7 10.5 33.6 2900 2.2
4
21 30 2.4 2.72
25.2 27 2.9
50CWL-5 10.5 45.5 2900 5
5.5
21 42 2.8 4.07
25.2 39.5 3.1
50CWL-3.5 10.5 64 2900 1.8
7.5
21 60 2.3 6.24
25.2 57 2.9
65CWL-11 17.5 23.7 2900 3.5
4
35 21 3.8 2.78
42 19.4 4
65CWL-8 17.5 33 2900 2.2
5.5
35 30 2.4 4.08
42 28 2.7
65CWL-6 17.5 45.2 2900 2.8
7.5
35 42 2.5 5.98
42 38.2 2.8
65CWL-5 17.5 64 2950 2.8
11
35 60 2.5 9.08
42 57 2.8
80CWL-14 30 23 2900 3.7
5.5
60 21 3.7 4.4
72 19.7 3.8
80CWL-14A 28 20.4 2900 3.7
5.5
56 18.5 3.7 3.71
67.2 17.5 3.8
80CWL-11 30 34.5 2900 2.2
7.5
60 30 2.9 6.54
72 27.2 3.6
80CWL-11A 28.5 31 2900 2.2
7.5
57 27 2.9 5.74
68.4 24.5 3.6
80CWL-8 30 45 2950 3.7
11
60 42 3.2 9.4
72 38.8 3.1
80CWL-8A 28 40 2950 3.7
11
56 37.6 3.2 8.07
68.2 34.5 3.1
80CWL-6 30 67.7 2950 2.8
18.5
60 60 2.3 14.21
72 54.4 2.7
80CWL-5.5 30 77.3 2950 2.6
22
60 75 2.6 17.26
72 73 2.8
80CWL-5.5A 28.4 69.4 2950 2.6
18.5
56.8 67.3 2.6 14.8
68 65.5 2.8
100CWL-18 50 24.4 2950 3.6
11
100 21 4.3 7.33
120 17.8 4.9
100CWL-18A 48.2 22.7 2900 3.6
7.5
96.4 19.5 4.3 6.82
115.6 16.5 4.9
100CWL-14 50 33.7 2950 2.5
15
100 30 3.3 10.47
120 27.5 3.8
100CWL-14A 47.6 30.5 2950 2.5
11
95.2 27.1 3.3 9.24
114 24.9 3.8
100CWL-11 50 46.8 2950 2.5
18.5
100 42 3.2 14.85
120 37.5 3.7
100CWL-11A 46.8 41 2950 2.5
15
93.6 36.9 3.2 12.54
112 32.9 3.7
100CWL-8 50 64.8 2950 3.0
30
100 60 3.7 21.79
120 57 4.5
100CWL-8A 47 57.5 2950 3.0
22
94 53.2 3.7 18.66
112.8 50.6 4.5
More types can be offered,pls contact us for more details.
