Guangdong, China (Mainland)
DEYUAN MARINE
CXH1-101P
Engeering Plastic
Marine
3.2kg
Cartons
10-15 days after confirmed the order
1.The shell is made of high-strength engineering plastic PA+GF,the lampshade adopts injection of PC,lens hood adopts good quality stainless steel.
2.The signal lights have the whole seal structure,it is waterproof under the bad environment.
3.The connection of the signal light's lamp holder and the base adopt plug-in type,can replace the up and down bulb as open the cover.
4.The signal lights can work normally under the temperature -30°C~55°C.

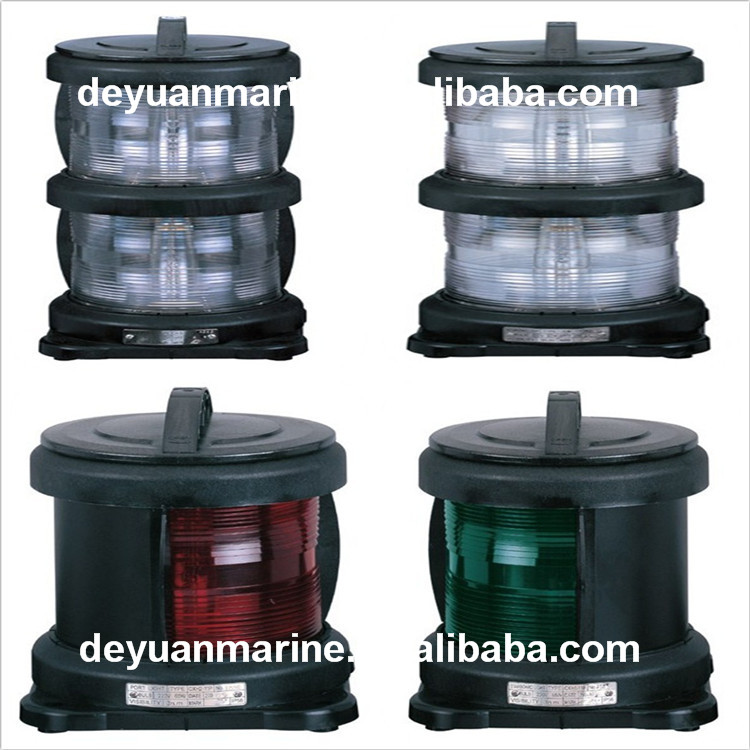

Marine Starboard Light
The scope of application:
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation
Product characteristic:
1.The shell is made of high-strength engineering plastic PA+GF,the lampshade adopts injection of PC,lens hood adopts good quality stainless steel.
2.The signal lights have the whole seal structure,it is waterproof under the bad environment.
3.The connection of the signal light's lamp holder and the base adopt plug-in type,can replace the up and down bulb as open the cover.
4.The signal lights can work normally under the temperature -30°C~55°C
Adopt standard:
1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships
2.Confirm to the international standard IEC60598-1-2008
3.Confirm to the standard of marine electric signal light's technical condition GB/T3028-1995
Production authentication:
4.Approved by CCS(China Classification society),and ZY of China Fishery Inspection.
5.Passed the authentication of CE
6.Approved by Germanischer Lloyd"GL"
7.Approved by MED/EC
Specification:
Name | type | Visibility | Level arc | Lamp holder | Bulb | Cable outside Diameter | Color | weight |
Double-deck starboard light | CXH1-101P | 3n.m | 112.5° | P28S | 24V/2*60w60cd 110v/2*60w60cd 220v/2*65w60cd |
Φ20 | Green | 12.80 kg |
