Guangdong, China (Mainland)
DEYUAN MARINE
Steel
Fixed
Awning Windows, marine door
steel door & door frame
Model A & Model B
ISO6042-1980
High Level
CCS ABS etc
Exported Packing

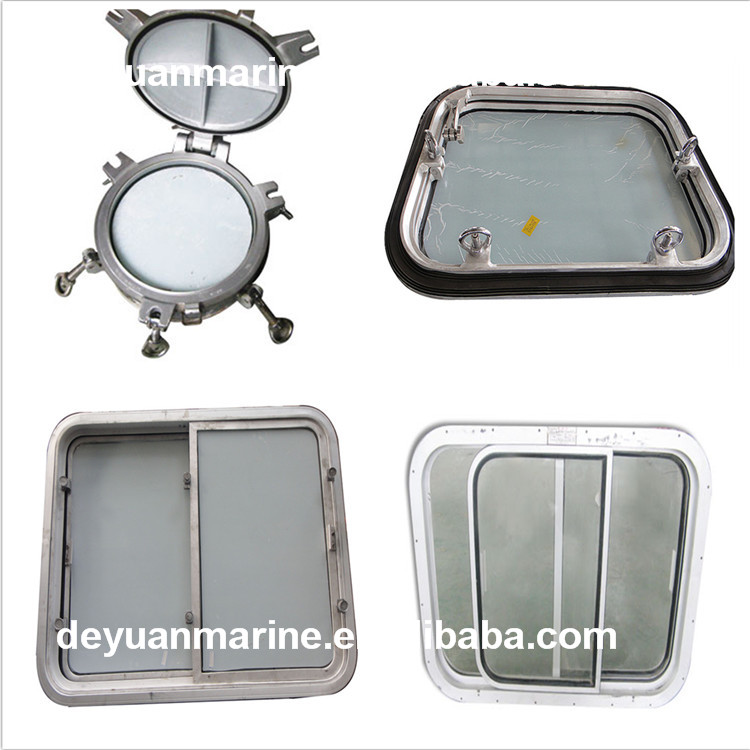

Marine Steel Rectangular Window
Aluminium Alloy or Steel
High quality and clear glass
Plywood pallet with plastic film wrapping.
Marine Steel Rectangular Window in 6/8mm thickness with CCS certificate for boat
1.Type: Rectangular Window
2.Material:steel door &door frame.
3.Standard:ISO6042-1980.
Rectangular Window
N series regular series:common rectangular windows with a toughened safety glass pane
P series fire-resistant series:Rectangular windows used in B class fire resistant divisions.
H series heated series:rectangular windows with an electri-heated glass pane
Type:Heavy-type rectangular window & light type rectangular window
Series | Type | Nominal size | Opening size of casing wall | Fixed frame | ||
W*h | W1*h1 | r | W2*h2 | W3*h3 | ||
N P H | 1 | 300*425 | 352*477 | 76 | 348*473 | 430*555 |
2 | 355*500 | 407*552 | 76 | 403*548 | 485*630 | |
3 | 400*560 | 452*612 | 76 | 448*608 | 530*690 | |
4 | 450*630 | 402*682 | 126 | 498*678 | 580*760 | |
5 | 500*710 | 552*762 | 126 | 548*758 | 630*840 | |
6 | 560*800 | 612*852 | 126 | 608*848 | 690*930 | |
7 | 900*630 | 952*682 | 126 | 948*678 | 1030*760 | |
8 | 1000*710 | 1052*762 | 126 | 1048*758 | 1130*840 | |
9 | 1100*800 | 1152*852 | 126 | 1148*848 | 1230*930 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
