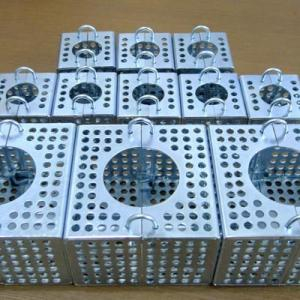

Marine Strum Box JIS F7206

Specifications

Marine Strum Box:
1)good quality with test certificate
2).with one year's warranty
3)Hot Dip Galv

Marine Strum Box JIS F7206:

Strum Box also can be called as Rose Box

Design Standard: JIS F7206-1998





Main Material:

1.2--Strainer Plate: SS400 with hot dip galv

3--Bottom Plate: SS400 with hot dip galv

4--Locking Bar: SS400 with hot dip galv

5--Support Piece: SS400 with hot dip galv





Main Size List(mm):

DN	D	D1	D2	d	L	J	C	H	H1	H2	h	t	B	Weight(kg)
40	48.6	52	25	9	95	75	30	65	90	28	17	3.2	30	0.78
50	60.5	65	25	9	110	90	30	80	105	35	20	3.2	40	1.34
65	76.3	82	45	9	140	120	30	95	120	35	22	3.2	40	2.1
80	89.1	94	50	9	170	140	30	110	135	35	25	3.2	50	3.01
100	114.3	120	80	9	200	170	30	140	165	40	30	3.2	50	4.2
120	139.8	145	105	9	260	230	30	170	200	40	40	3.2	50	6.36
150	165.2	170	125	9	320	290	30	200	230	40	50	3.2	60	9.36
200	216.3	222	180	13	380	340	40	260	300	55	60	4.5	65	20.5
250	267.4	272	225	13	440	400	40	320	360	55	70	4.5	75	27.8
300	318.5	324	280	16	500	450	50	350	400	65	80	4.5	80	35.3
