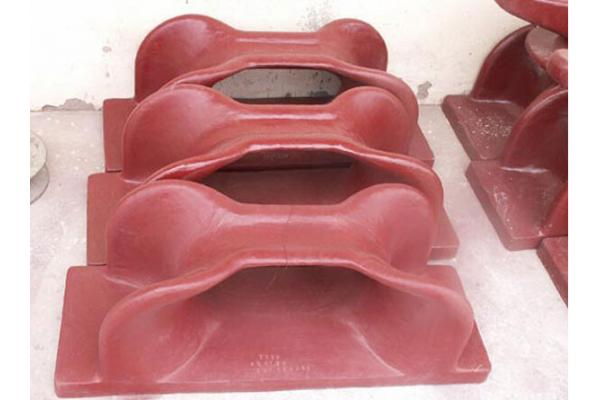

Marine Use NS2588 Chocks

  • DEYUAN

Specifications



Marine use chock:
1.Strict quality control.
2.Can issue BV,CCS,DNV,LR,KR,ABS,RINA certificate
3.Good after-sale serv





Marine use chock:



Marine use NS2588 chocks:

Feature:

1.Strict quality control.
2.Can issue BV,CCS,DNV,LR,KR,ABS,RINA certificate
3.Material: ZG200-400,ZG230-450.
4.Paint: Grey Epoxy Primer or Black Bitumen Paint, also can do comply with your requirement for the thickness.


5. Packing: Steel Pallet

6.surface in contact with the rope in use been finished smoothly.

We designs and manufactures panama chocks in a wide variety of sizes and styles.

Our panama chocks and other deck fittings are used by military and industrial ships, operating effectively throughout the world.

Drawing:



NS2588 chock
Nominal sizec2 d2e2f2h2t2Mass(kg)
200*1503382881384381892028.5
300*2004583581585682342063.3
400*25060045020074030025135

Also we can supply other kinds of Chocks as below.



Deck mounted Panama chock JIS F2017-1982 type AC

Bulwark mounted Panama Chock JIS F2017-1982 Type BC

Deck Mounted Closed Chock JIS F2005-1975

Bulwark mounted mooring chock JIS F 2007-1976 type A

Bulwark Mounted Chock DIN81915-1998 Type A

Bulwark Mounted Chock DIN81915-1998 Type B

Deck mounted Chock DIN81915-1998 type C

Deck mounted Chock DIN81915-1998 type D

Deck mounted Chock DIN81915-1998 type E

Deck Mounted Chock EU Type

Bulwark Mounted Chock EU Type

Single Point Mooring Pipe JIS F 2030-1978 type A

Single Point Mooring Pipe JIS F 2030-1978 type B

Deck mounted chock type A NS2587

Deck mounted chock type B NS2587

Deck mounted chock type A NS2588

Deck mounted chock type B NS2588

Deck mounted chock type A NS2589

Deck mounted chock type B NS2589

Deck mounted chock type A NS2590

Deck mounted chock type B NS2590

Mooring chock CB34 -76 TYPE A

Mooring chock CB34 -76 TYPE C

Open chock JISF 2006 TYPE FC
