Guangdong, China (Mainland)
DEYUAN MARINE
CFY22-2
Other
2x20W
220V/50Hz,220V/60Hz,110V/60Hz
6.8kg
Export Standard

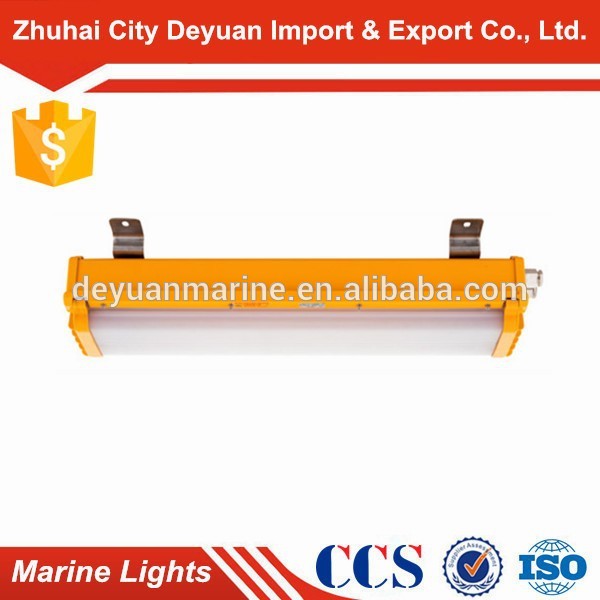

Marine Used Explosion-proof Fluorescent Light CFY22-2
The Scope of application:
Applied to cabin illumination in the hazardous area such as chemical factory,oil refinery,oil and gas plant with explosive gas atmosphere.
Products characteristic:
1.The shell is made with aluminium alloy,and quality white PC lampshade.
2.The external of light overall is fixed with six angle screw,with good sealing and high protection class.
3.The light has two mounting type:Surface and flush mounting,it convenient for customer to choose.
4.The light adopts the quick ex-proof electronic ballast start,with good start effect.
5.Safety increased type and cementing type ex-proof structure.
Adopt standard:
Conform to international IEC standard,GB19510.4, GB3836 and GB12045.
Type | CFY22-2 |
Explosion-proof Mark | Exemd II C T5 |
Voltage | 220V/50Hz,220V/60Hz,110V/60Hz |
Power | 2x20W |
Lamp Holder | G13 |
Protection Class | IP54 |
Cable Diameter | Dia10-12.5mm |
Weight | 6.8kg |
CFY22-2 Explosion-proof Fluorescent Light
