Guangdong, China (Mainland)
DEYUAN MARINE
CXH1-2P
Other
Green
IP56
24V/30W
2.6KG
B15d
2-5 n.m
112.5-360 degree
CCS CE GL
High
Exported packing
Export Standard

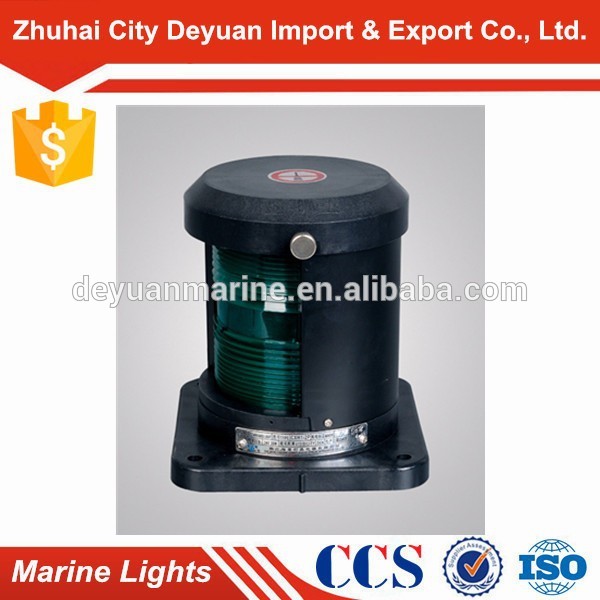

Marine Used Single-deck Navigation Signal Starboard Light CXH1-2P
Single-deck Navigation Signal Starboard Light
Application scope:
Used in ships with length 12m or above 12m (<50M) as lamp signal liaison when night navigation.
Products advantage:
1.Easy to Install and replace the bulb with a leakage hole at the bottom.
2.The shell is made of engineering plastic, corrosion resistance and impact resistance.
3.The shade is made of polycarbonate, UV Resistance and non-discolouring color.
Production authentication:
Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
Standard:
1. Conform to THE INTERNATIONAL REGULATION FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY
NORMS FOR STEEL SHIPS.
2. Conform to the International standard IEC60598-1-2008.
3. Conform to the standard of marine electric signal light's technical condition GB/T 3028-2012.
Name | Model | Visible distance | Level arc | Lamp holder | Bulb | Protection class | Color | Weight |
Starboard light | CXH1-2P | 2n.m | 112.5. | B15d | 24V 30W | IP56 | Green | 2.6kg |
Port light | CXH2-2P | 2n.m | 112.5. | Red | 2.6kg | |||
Masthead light | CXH3-2P | 5n.m | 225. | Transparent | 2.5kg | |||
Stern light | CXH4-2P | 2n.m | 135. | Transparent Yellow | 2.7kg | |||
All-round light | CXH6-2P | 2n.m | 360. | Red Green Transparent | 2.2kg |
CXH1-2P Single-deck Navigation Signal Starboard Light
