DEYUAN

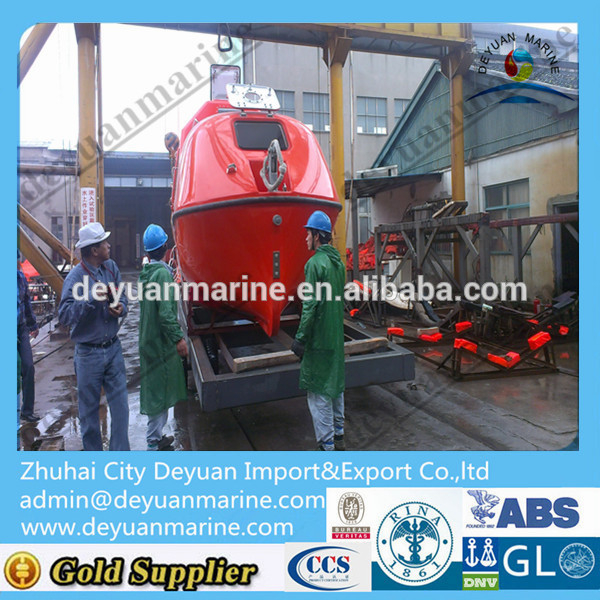

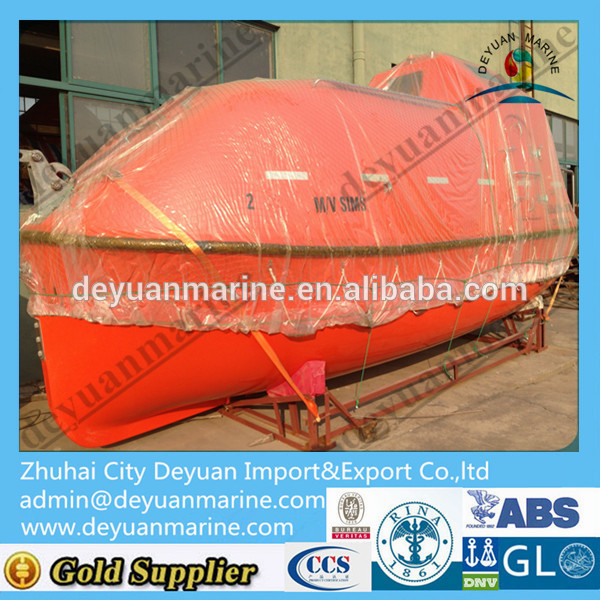

Marine vessel lifeboat FRP Life boat free fall lifeboat
1.Material:F.R.P .
2.Certificate:CCS,EC,BV,ABS,RINA,DNV.
3.Capacity:16~40Person.
4.Standard: ISO 9001:2000 and Maritime Equipment Directive(MED).
Totally Enclosed Free Fall fiberglass boat Lifeboat
The most popular series,F.R.P totally enclosed free fall lifeboat is developed from totally enclosed lifeboat.
The construction is specially strengthened to have light acceleration strike during water entry that can
be completed within seconds and escape rapidly from the vessels with longer self-stability.
The F.R.P totally enclosed free fall lifeboat suits particularly the more dangerous projects like offshore
oil drilling units etc.8models from 4.90 to 8.80M are available.
Model | Main DIM. (M) | Capacity (p) | Length of Ramp(m) | Speed (knots) | Drop height (m) | Davit load (kg) |
DY-FN-4.90 | 4.90*2.25*0.86 | 16 | 5.90 | >6 | 16 | 4040 |
DY-FN-4.90 | 4320 | |||||
DY-FN-5.80 | 5.8*2.55*0.90 | 25 | 7.0 | >6 | 17 | 5560 |
DY-FF-5.80 | 5890 | |||||
DYM-FN-6.65 | 6.65*2.70*1.20 | 30 | 8.2 | >6 | 21 | 6337 |
DYM-FF-6.65 | 6637 | |||||
DY-FN-6.80 | 6.80*2.70*1.20 | 31 | 8.20 | >6 | 22 | 6439.5 |
DY-FN-6.80 | 6739.50 | |||||
DY-FN-7.50 | 7.50*2.70*1.20 | 35 | 9.0 | >6 | 22 | 7374 |
DY-FF-7.50 | 7724 | |||||
DY-FN-8.50 | 8.80*2.94*1.20 | 40 | 10.2 | >6 | 25 | 8422 |
DY-FF-8.50 | 8722 |
