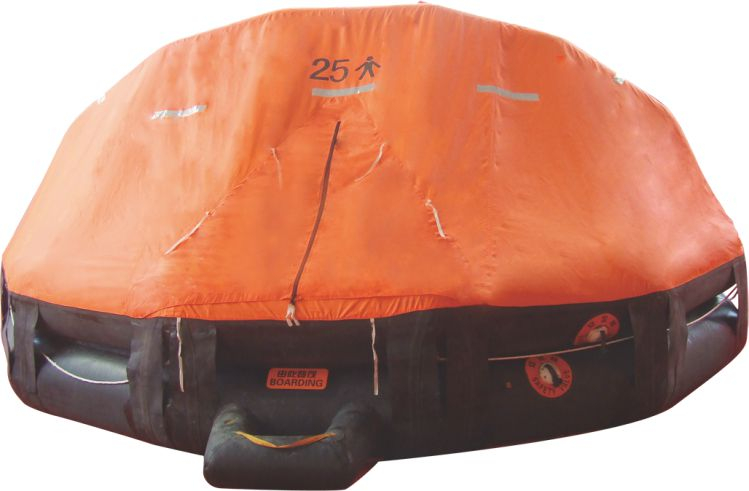

The Throw-overboard Inflatable Liferafts are stored in containers on deck an inflate in the water when the painter line is pulled.
The liferafts with type approval by CCS and EC(EC was issued by GL).
1.Have capacity to accommodate 6, 10, 15, 20, 25 persons
2) Have a canopy to protect occupants from exposure.
3.Floor shall be water tight and insulated from protection against cold water.
4.Consist of two separate buoyancy tubes
5.Fitted with sufficient strength towing arrangements.
6.Capable of withstanding hard wear and inflating automatically.
7.Fitted on the fixed support shelf, safely lashed using lash arrangement, and capable for
rapidly abandoned to the sea surface in case of emergency.
8.Meets the SOLAS and LSA Code requirement
10 persons Throw-over board Inflatable Life Raft:
The installation height is 18-50m from water surface.
Main dimension length:3300mm
Main dimension breadth:2200mm
(Co2+N2)*2/weight of gas:1700*2g
Max storage height:36M
The FRP container:Diameter 620*1260
