SOLAS approved Throw-over board Inflatable Life Raft

  • DEYUAN

Specifications



Life raft:
1.Certificate:CCS and EC.
2.SOLAS approved.
3.Open automatically.
4.material:fibre reinforced plastic.



Life raft:

SOLAS approved Throw-over board Inflatable Life Raft:

Feature:

1.Certificate:CCS.
2.SOLAS approved.

3.Open automatically.
4.material:fibre reinforced plastic.

The Throw-overboard Inflatable Liferafts are stored in containers on deck an inflate in the water when the painter line is pulled.

The standard sizes of the liferafts are available with:6,10,15,20 and 25 persons.

The liferafts with type approval by CCS and EC(EC was issued by GL).

Rules and relevant Regulations:

1996 Amendment to the International Convention for the Safety of life at Sea 1974 and MSC.48(66)

The International Life-saving Appliance Code and Register of Shipping of the People’s Republic of China

(Technical Regulation for statutory surveys of sea-gong Ships Engaged On International Voyages)1999.

It is suitable for installing ships on international voyages.
Product Standard:It meets the requirements of "Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged on International Voyages(1999)" of P.R.C.And SOLAS 74/96 Amendment,LSA and MSC.218(82).
Equipment Outfitting
A Pack of B Pack(Ships engaged on Short international voyage)
Inflation method
After throwover from ship,the liferaft can be inflated and opened automatically.If the ship sinks very fast and the  life-raft can not be throw over,the raft still can float up from water under the action of Hydrostatic Release Unit and can be inflated and opened automatically.
MAX.Storage Height
The installation height is 18-50m from water surface.

6 persons Throw-over board Inflatable Life Raft:

Capacity:6 persons

Main dimension length:2446mm

Main dimension breadth:2260mm

(Co2+N2)*2/weight of gas:1200*2g

Max storage height:36M

Physical form:Regular octagon

Gross weight:85kg

The FRP container:Diameter 600*1140

Packaging size:1220*680*720mm



10 persons Throw-over board Inflatable Life Raft:

Capacity:10 persons

Main dimension length:3300mm

Main dimension breadth:2200mm

(Co2+N2)*2/weight of gas:1700*2g

Max storage height:36M

Physical form:Ellipse

Gross weight:105kg

The FRP container:Diameter 620*1260

Packaging size:1340*700*740mm

15 persons Throw-over board Inflatable Life Raft:
Capacity:15 persons

Main dimension length:3546mm

Main dimension breadth:3425mm

(Co2+N2)*2/weight of gas:2800*2g

Max storage height:36M

Physical form: regular Twelve-sided polygon

Gross weight:135kg

The FRP container:Diameter 700X1460

Packaging size: 1420X740X780MM



20 persons Throw-over board Inflatable Life Raft:
Capacity:20 persons

Main dimension length:4600mm

Main dimension breadth:3000mm

(Co2+N2)*2/weight of gas:3200*2g

Max storage height:36M

Physical form:Ellipse

Gross weight:170kg

The FRP container:Diameter 700X1460

Packaging size: 1540X780X820MM

25 persons Throw-over board Inflatable Life Raft:
Capacity:25 persons

Main dimension length:4300mm

Main dimension breadth:4220mm

(Co2+N2)*2/weight of gas:4200*2g

Max storage height:36M

Physical form: regular sixteen-sided polygon

Gross weight:210kg

The FRP container:Diameter 700X1460

Packaging size: 1540X780X820MM

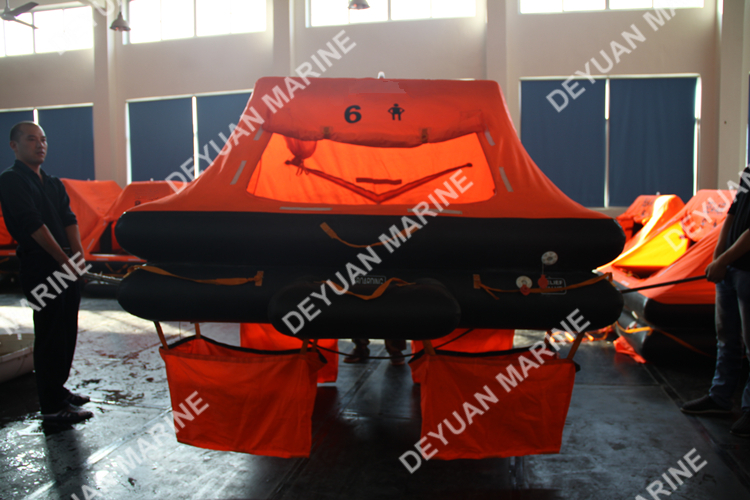

6 Man Yacht Inflatable Liferaft 05
