China (Mainland)
Deyuan
CFA-2-2
550V/20A
IP56
Aluminum
Wooden case
20days

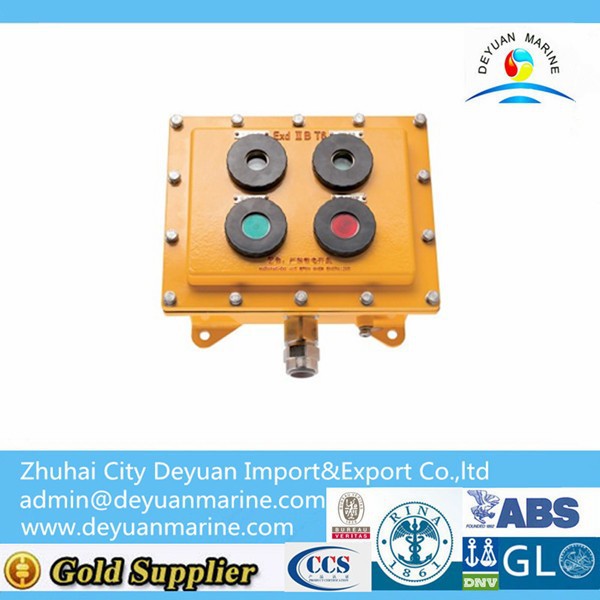

Ship Explosive Gas Explosion-proof Button Box
Application:
Applies to ships, oil platforms, chemical containing II A, II B, T1 to T6 group explosive gas mixtures 1 and Zone 2 place.
Characteristic:
1. Product shell is made of the A1Si12 aluminium alloy die-casting, surface electrostatic spray, stainless steel exposed fasteners.
2. Overall enclosure with explosion-proof structure, highly waterproof, dust-proof ability, button box seals are made of silicone rubber, its high corrosion resistance, built-in indicator, two buttons, optional according to customer requirements 1-2 indicator or the 1-2 buttons; buttons contacts is a normally open a normally closed; signs inside and outside the ground, reliable and secure ground.
3. Rated voltage 380V AC, rated current 5A, protection IP56.
4. Armored cable wiring, cable diameter 13 to 14mm.
Production authentication:
Approved by CCS(China Classification Society)
Adopt standard:
National standard GB3836.1-2010,GB3836.2-2010.
Specification:
Voltage | 550V/20A |
Explosion-proof mark | Exe II C T6 |
Protection class | IP56 |
Material | Aluminum |
Cable outside Diameter | Φ10-Φ12.5 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Gary
E-mail: sales9[at]deyuanmarine[dot]com
Skype: marinesales9
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86-13798955750
Web: http://www.deyuanmarine.com
