DEYUAN MARINE
CXH4-10P
Other
White Yellow
3.7KG
24v60w 110v65w 220v65w
B22d
IP56
Export Standard

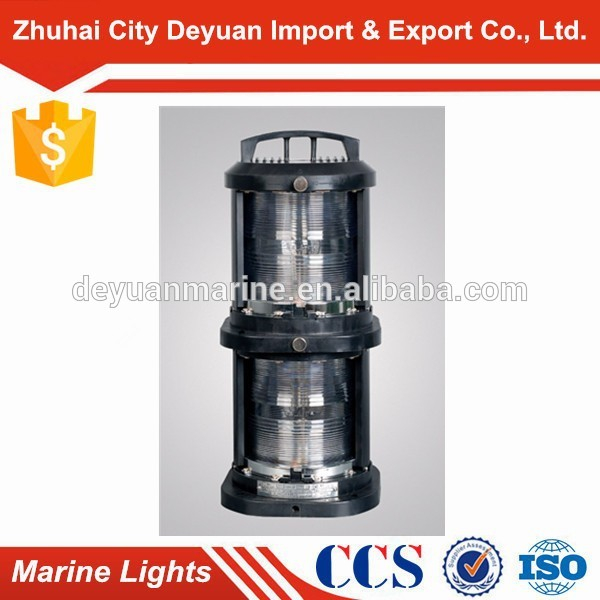

Ship Outdoor Double-deck Navigation Signal Stern Light For Sale
Double-deck Navigation Signal Stern Light
The scope of application:
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic:
1.It is convenient to install and replace the bulb, and there are automatic leakage holes in the bottom.
2.The shell adopts good quality metal material steel, the surface is painted the special mold-powder, has the feature of
corrosion-resisting and shock resistance.
3.The lampshade adopts polycarbonate, it has the feature of ultraviolet radiation resistance and does not discolor ect.
Production authentication:
Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
Adopt standard:
1.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY
NORMS FOR STEEL SHIPS.
2.Conform to GB/T3028-1995 standard.
3.Confirm to the international standard IEC60598-1-2008.
Name | Type | Visible Distance | Level Arc | Lamp Holder | Bulb | Protection Class | Color | Weight |
Starboard Light | CXH1-10P | 3N.M | 112.5°
| B22d | 24v60w 110v65w 220v65w | IP56 | Green | 3.8KG |
Port light | CXH2-10P | 3N.M | 112.5° | Red | 3.8KG | |||
Masthead light | CXH3-10P | 6N.M | 225° | White | 3.7KG | |||
Stern light | CXH4-10P | 3N.M | 135° | White Yellow | 3.7KG | |||
All-round light | CXH6-10P | 3N.M | 360° | Red Green White | 3.6KG |
CXH4-10P Double-deck Navigation Signal Stern Light
