Single-Deck Stainless Steel Navigation Signal Masthead Light

  • Guangdong, China (Mainland)

  • DEYUAN MARINE

  • CXH3-1S

  • Other

  • White

  • 24V/60W60cd 110V/60W60cd 220V/65w60cd

  • P28S

  • IP56

  • 225 degree

  • 11

  • 6n.m

  • high quality level

  • CCS

  • ZY

  • Export Standard

  • 5-10days

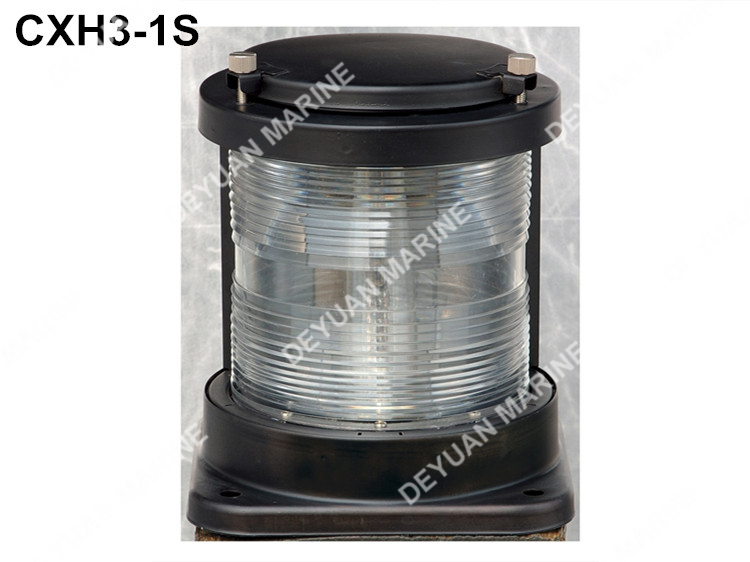

Single-Deck Stainless Steel Navigation Signal Masthead Light

Application scope:



Used in ships with length 50m or above 50m as lamp signal liasion when night navigation.

Product characteristics:



1.The shell adopts good quality stainless steel plate. The surface is painted with special mold powder, has the feature of corrosion

 resisting and shock resistance.



2.Whole seal structure, waterproof under severe environment.



3.It is convenient to replace the bulb due to the quick-open cover.



4.The lampshade adopts PC material, chroma stable and ultraviolet radiation resistance.



Certificates:



Approved by CCS (China Classification Society), ZY of China Fishery Inspection.

Standard:



1.Conform to THE INTERNATIONAL REGULATION FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY

NORMS FOR STEEL SHIPS.



2. Conform to the standard of marine electric signal light's technical condition GB/T 3028-2012.





Name

Type

Visibility

Level

arc

Lamp

holder

Bulb

Protection

class

Cable outside

diameter

Color

Starboard light

 CXH1-1S

 3n.m

 112.5°

 P28S



24V/60W60cd

110V/60W60cd

220V/65w60cd

 IP56

 Φ11

 Green

Port light

 CXH2-1S

 3n.m

 112.5°

 Red

Masthead light

 CXH3-1S

 6n.m

 225°

 White

Stern light

 CXH4-1S

 3n.m

 135°

White

Yellow

All-round light

 CXH6-1S

 3n.m

 360°

 Red, Green

White



CXH3-1S Single-Deck Stainless Steel Navigation Signal Port Ligh
