Guangdong, China (Mainland)
DEYUAN MARINE
CXH3-2C
Other
Transparent
IP55
24V/30W
1.8KG
B15d
Steel
10-20
112.5-360 degree
2-5 n.m
Exported packing
Export Standard
5-10days

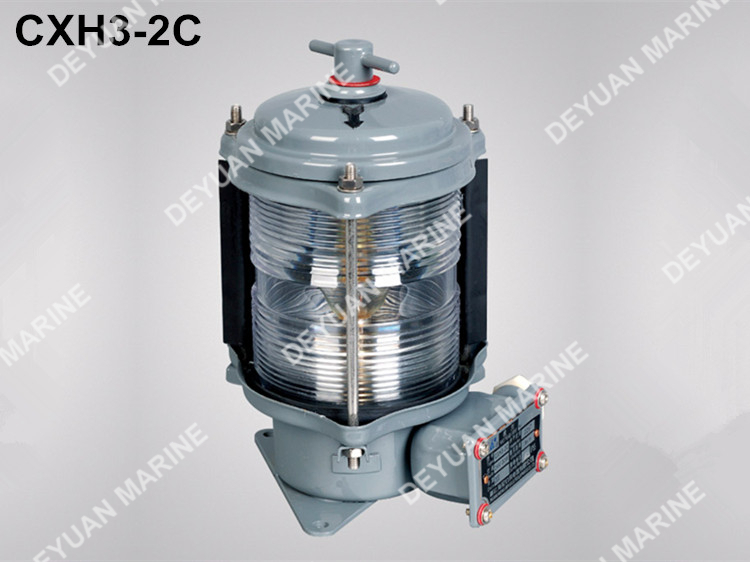

Waterproof Marine Single-deck Navigation Signal Masthead Light CXH3-2C
The scope of application:
Applied to the ships with the length 12m or above 12m(<50m) as lamp signal liaison when night navigation.
Products characteristic:
1.it is convenient to install and replace the bulb,and there are automatic Leakage holes in the bottom.
2.The shell adopts good quality metal material steel,the surface is painted the special mold-powder,has the feature of
corrosion-resisting and shock resistance.
3.The lampshade adopts PC material,it has the feature of ultraviolet radiation resistance and does not discolor ect.
Adopt standard:
1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships
2.Confirm to GB/T3028-2015.
Name | Type | Visibility | Level arc | Lamp holder | Bulb | Cable outside Diameter | Protection class | Material | Color | Weight |
Starboard light | CXH1-2C | 2n.m | 112.5° | B15d | 24V/30W
|
Φ10-Φ12 | IP55 | steel | Green | 1.8kg |
Port light | CXH2-2C | 2n.m | 112.5° |
|
|
|
| steel | Red | 1.8kg |
Masthead light | CXH3-2C | 5n.m | 225° |
|
|
|
| steel | Transparent | 1.8kg |
Stern light | CXH4-2C | 2n.m | 135° |
|
|
|
| steel | Transparent yellow | 1.8kg |
All-round light | CXH6-2C | 2n.m | 360° |
|
|
|
| steel | Red green transparent | 1.8kg |
CXH3-2C Single-deck Navigation Signal Masthead Light
